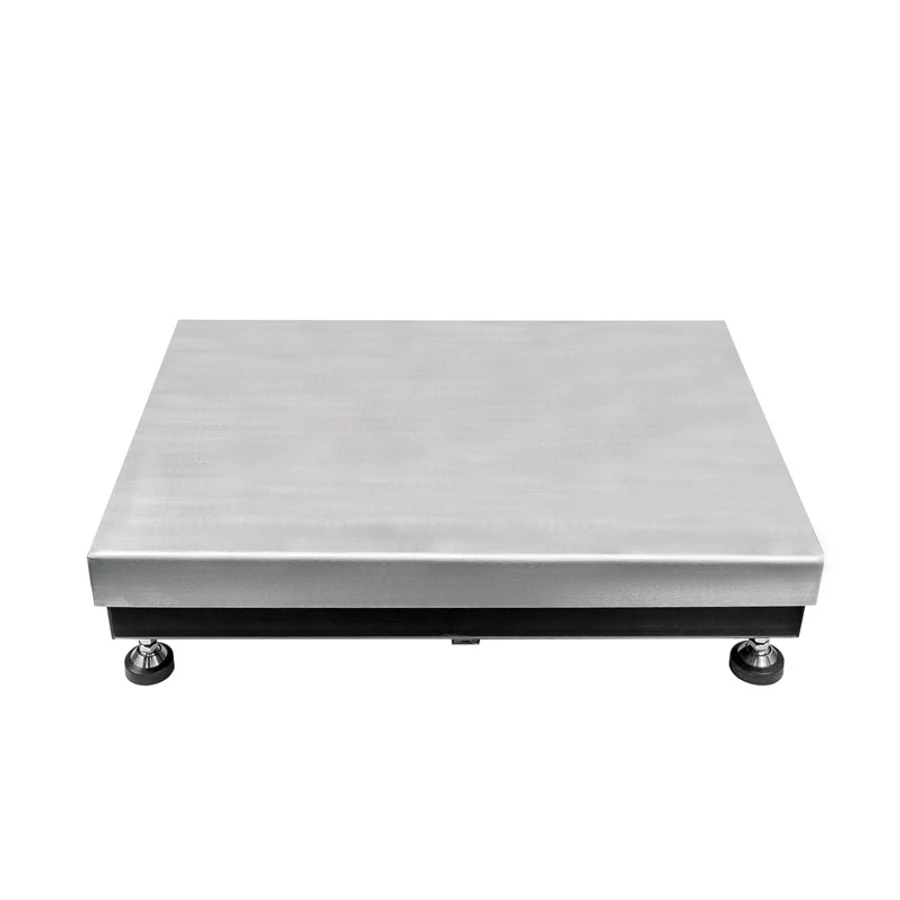

High Capacity HRP Platform
Wherever high readability and precision are important. Wherever good repeatability in harsh industrial conditions matters.
High Capacity HRP Platforms are the ideal solution for any type of industry.
Repeatability that cannot be repeated by others
High Capacity HRP Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment.
Unbreakable
High Capacity HRP Platforms feature a modern electromagnetic mechanism design in a sealed steel housing and overload protection. The use of stainless steel for the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing. High Capacity HRP Platforms are distinguished by a high degree of protection IP 67.
For an additional charge we will make HRP platforms in Ex version, but in order for the device to work in explosive areas, you need to supply the PUE HX5.EX terminal.
Use the potential
High Capacity HRP Platforms work with one of two weighing terminals:
PUE 7.1 or PUE HY10. The terminals’ software enables you to archive your work results, ensures data safety, and allows the platforms to work with powerbanks from our offer. In turn, you will select appropriate antivibration tables for the platforms, and thus increase the readability of your measurements.
Parameters
- Maximum capacity [Max]: 150 kg
- Weighing pan dimensions: 500×400 mm
- Adjustment: internal (automatic)
- Protection class: IP 67
- Communication interface: RS232, RS485, Ethernet
- Construction: mild steel St3S
- Weighing pan material: Stainless steel AISI304
- Readability [d]: 1 g
- Tare range: -150 kg
- Repeatability: 0,6 g
- Linearity: ±3 g
- Preload range: 30 kg
- Net weight: 37 kg
- Gross weight: 47 kg
- Relative humidity: 15% ÷ 80%
- Power supply: 100 – 240 V AC 50/60 Hz
- Operating temperature: +10 ÷ +40 °C
- Packaging dimensions: 610×710×275 mm
