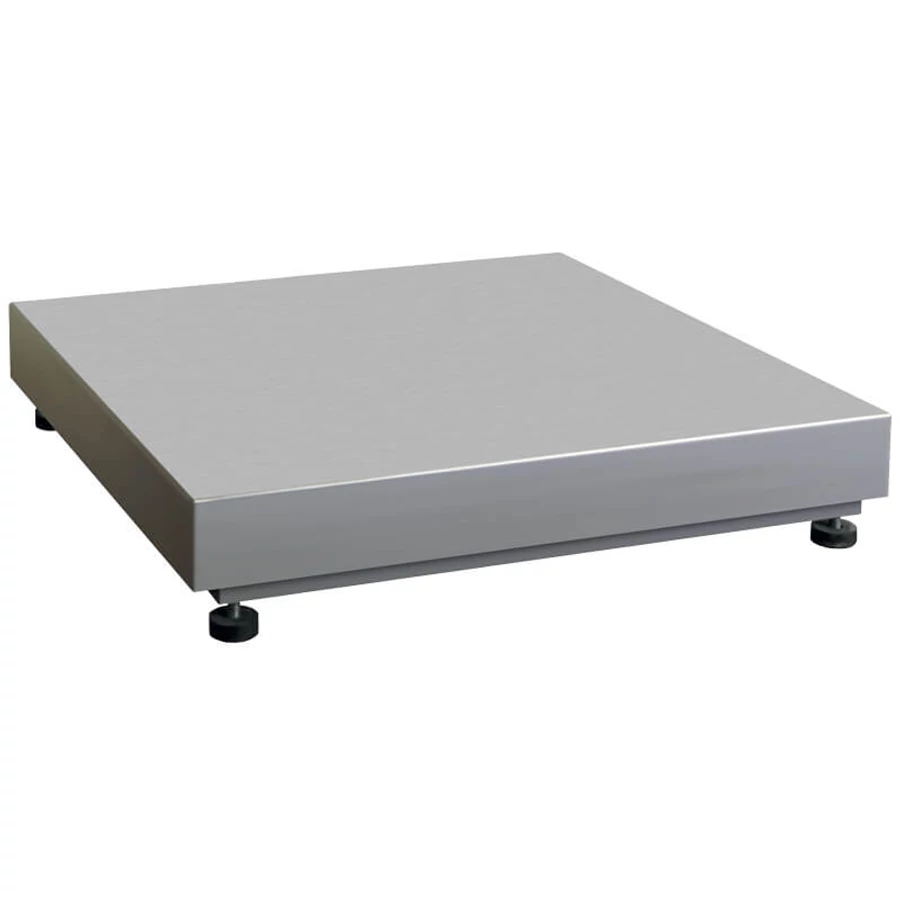

Stainless Steel HRP.H Platform
Wherever high readability and precision are important. Wherever good repeatability in harsh industrial conditions matters. Stainless Steel HRP.H Platforms are the ideal solution for any type of industry.
Repeatability that cannot be repeated by others
Stainless Steel HRP.H Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment.
Unbreakable
Stainless Steel HRP.H Platforms feature a modern electromagnetic mechanism design in a sealed steel housing and overload protection. The use of stainless steel for the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing. Stainless Steel HRP.H Platforms are distinguished by a high degree of protection IP 67.
For an additional charge we will make HRP platforms in Ex version, but in order for the device to work in explosive areas, you need to supply the
PUE HX5.EX terminal.
Use the potential
Stainless Steel HRP.H Platforms work with one of two weighing terminals: PUE HY10 or PUE 7.1. The terminals’ software enables you to archive your work results, ensures data safety, and allows the platforms to work with powerbanks from our offer. In turn, you will select appropriate antivibration tables for the platforms, and thus increase the readability of your measurements.
Parameters
- Communication interface: RS232, RS485, Ethernet
- Protection class: IP 66/67
- Adjustment: internal (automatic)
- Maximum capacity [Max]: 150 kg
- Readability [d]: 1 g
- Tare range: -150 kg
- Repeatability: 0,6 g
- Linearity: ±3 g
- Preload range: 30 kg
- Net weight: 71,5 kg
- Gross weight: 119 kg
- Relative humidity: 15% ÷ 80%
- Weighing pan material: Stainless steel AISI304
- Power supply: 100 – 240 V AC 50/60 Hz
- Operating temperature: +10 ÷ +40 °C
- Packaging dimensions: 1000×800×307 mm
- Weighing pan dimensions: 500×500 mm
- Construction: Stainless steel AISI304
