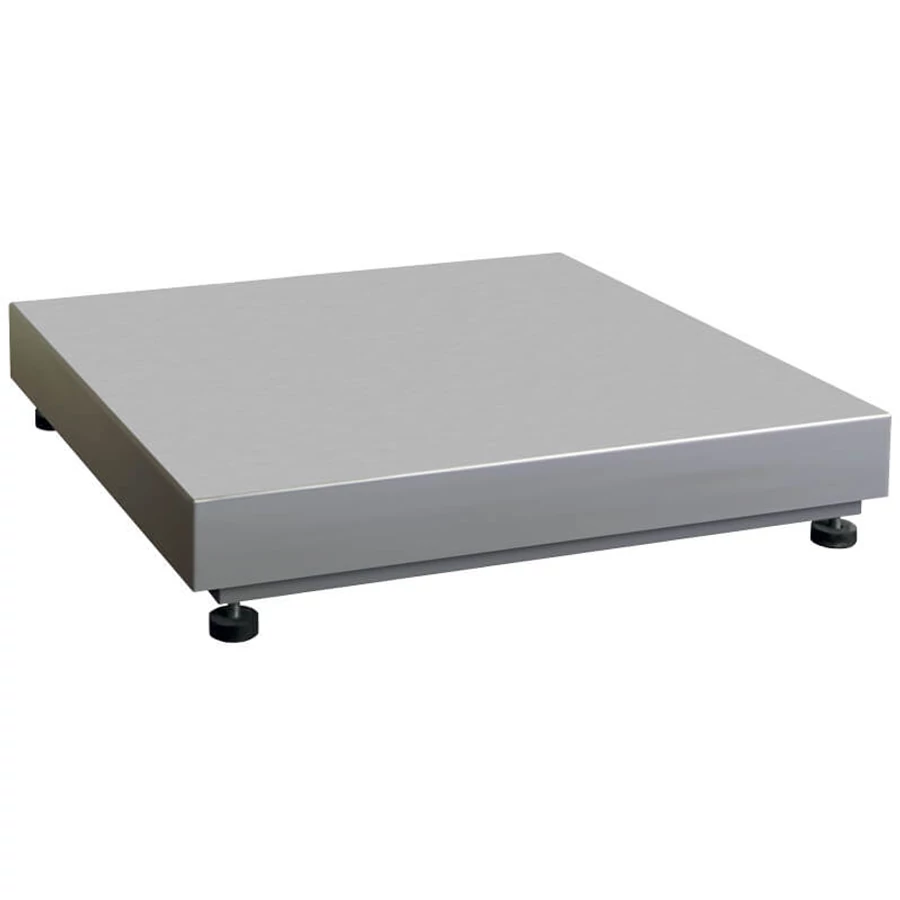

Stainless Steel HRP EX.H Platform
Wherever high readability and precision are important. Wherever good repeatability in harsh industrial conditions matters. Stainless Steel HRP EX.H Platforms are the ideal solution for any type of industry.
Repeatability that cannot be repeated by others
Stainless Steel HRP EX.H Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment.
Hazardous areas are their natural environment
Stainless Steel HRP EX.H Platforms have been developed in accordance with Directive 2014/34/EU and the IECEx scheme and, depending on their design, can operate in environments containing explosive gases or dust, classified as zones: 2 and 22. We have equipped them with an intrinsically safe RS 485 communication interface, which allows the platform to work with the PUE HX5.EX weighing meter.
To power the platforms, we have dedicated intrinsically safe PM02.EX-1-2 or PM02.EX-2-2 power supplies.
Use the potential
Stainless Steel HRP EX.H Platforms work with the PUE HX5.EX weighing terminal and are compatible with RADWAG receipt printers. In addition, you will match them with appropriate antivibration tables from our offer, and thus increase the readability of your measurements. The use of stainless steel for the construction of the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing.
Parameters
- Protection class: IP 66/67
- Adjustment: internal (automatic)
- Maximum capacity [Max]: 150 kg
- Weighing pan dimensions: 800×600 mm
- Readability [d]: 1 g
- Tare range: -150 kg
- Repeatability: 1,5 g
- Linearity: ±3 g
- Preload range: 30 kg
- Net weight: 71,5 kg
- Gross weight: 119 kg
- Relative humidity: 15% ÷ 80%
- Weighing pan material: Stainless steel AISI304
- Power supply: 100 – 240 V AC 50/60 Hz
- Operating temperature: +10 ÷ +40 °C
- ATEX Certification: ll 3G Ex ic IIC T4 Gc
ll 3D Ex ic IIIC T60ºC Dc - Communication interface: RS485
- IECEx Certification: Ex ic IIC T4 Gc
Ex ic IIIC T60ºC Dc - Packaging dimensions: 1000×800×307 mm
- Construction: Stainless steel AISI304
