Waterproof platform scales H315/HR series is designed for operation in locations with high humidity or direct contact with water. The scales is easily used in areas with no access to power supply from mains, as it features an internal rechargeable accumulator.
Design

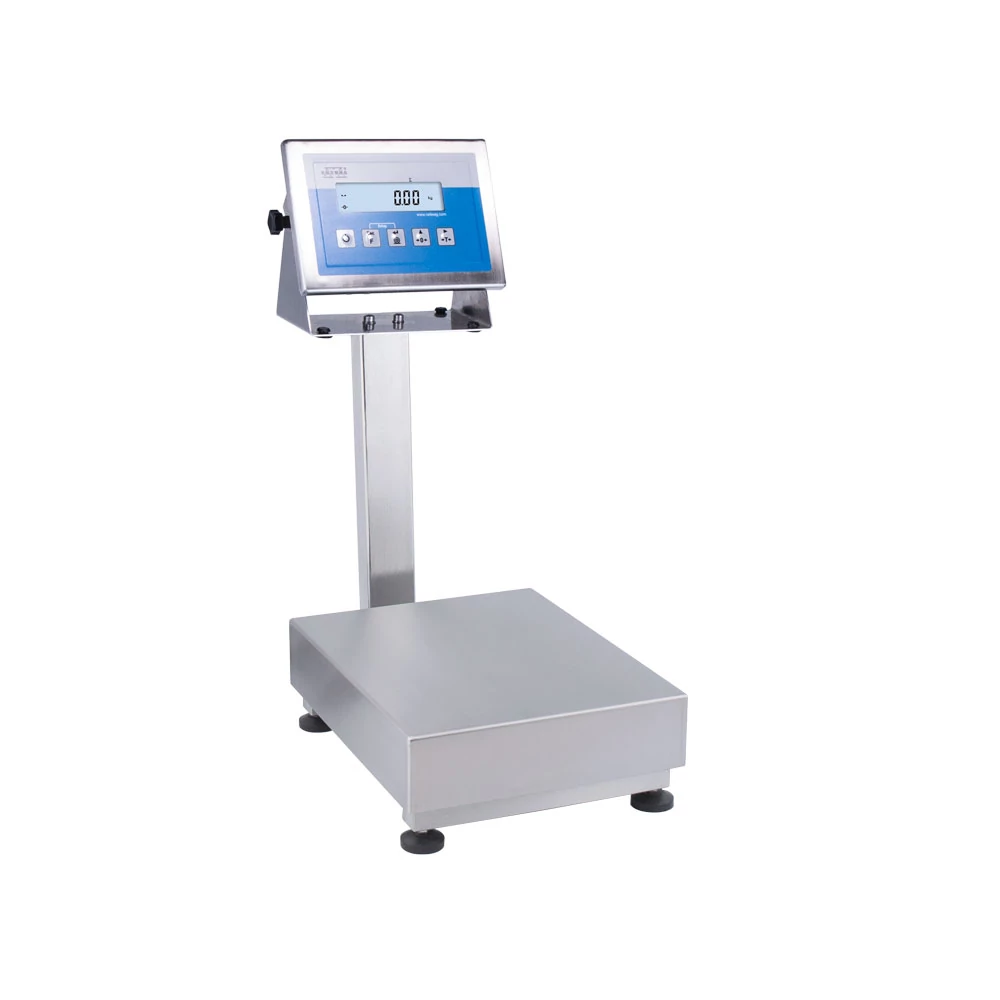

Single load cell stainless steel platform scales H315 HR series is based on a terminal PUE H315 series. The terminal features large backlit LCD display and function buttons for easy operation. The terminal is installed on a pillar for easy readout of measurement result. Optionally, the scales is offered with indicator installed on a cable for mounting it on a wall.
The weighing platform structure is made of stainless steel class AISI 316 with a stainless steel load cell providing the highest IP rating of 68.
The scales features RS 232 interface, and optionally an additional display socket. The scales is powered from mains or internal rechargeable accumulator.
Optionally, the scales can be powered from mains - 110÷120VAC 60Hz (non-standard factory option).
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 6/15 kg
- Minimum load: 40 g
- Readability [d]: 2/5 g
- Tare range: -15 kg
- Weighing pan dimensions: 250×300 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 cell, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Packaging dimensions: 560×310×270 mm
- OIML Class: III
- Verification unit [e]: 2 g
- Storage temperature: -25 - +70 °C
- Construction: Stainless steel AISI316
- Net weight: 9 kg
- Gross weight: 10,3 kg
- Max readability for non-verified scale: 0,2 g
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Communication interface: RS232, USB
