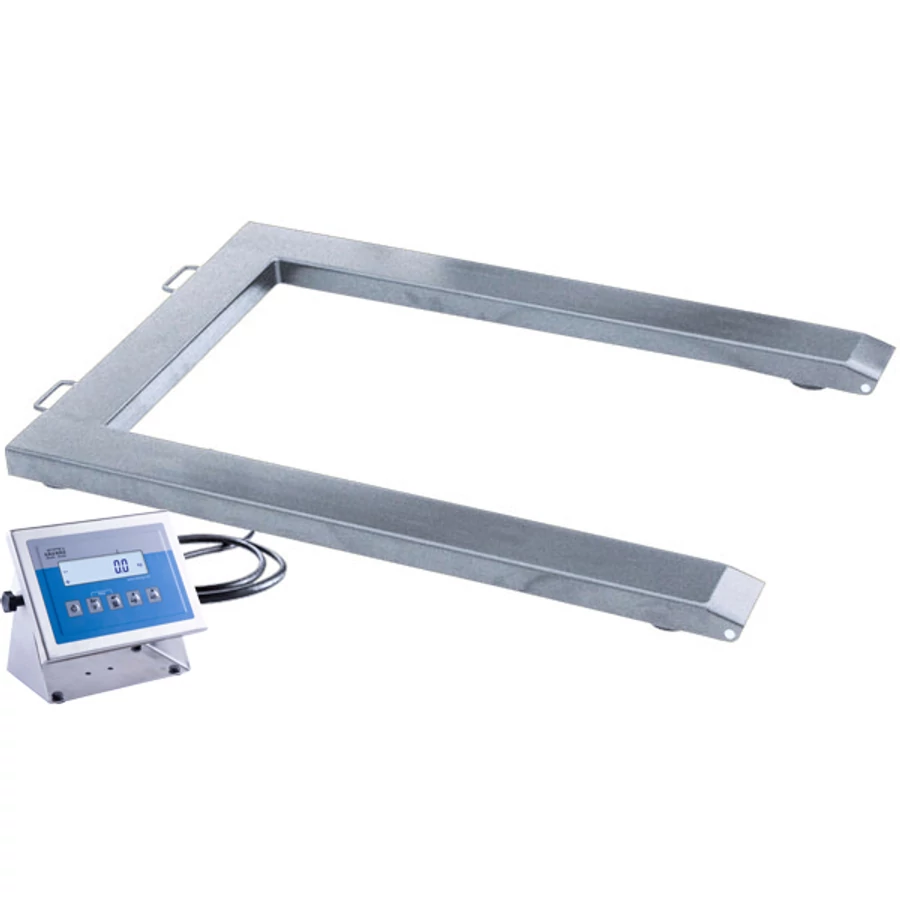

Pallet scales is stable and proved 4 load cell construction designed for weighing pallets. The load to be weighed can be placed on the platform by a standard fork-lift truck. Pallet scales H315/4P/H series is manufactured in stainless steel technology.
The H315/4P/H series features wheels and handles for easy transporting the scales to its place of use. The scales comes standard with an indicator PUE H315 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 600 kg
- Readability [d]: 200 g
- Tare range: -600 kg
- Weighing pan dimensions: 860×1200 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator: 46 kg
- Device dimensions: 1330×860×80 mm
- Minimum load: 4 kg
- Packaging dimensions: 1400×900×430 mm
- Max readability for non-verified scale: 200 g
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 3 m
- Communication interface: RS232, USB
