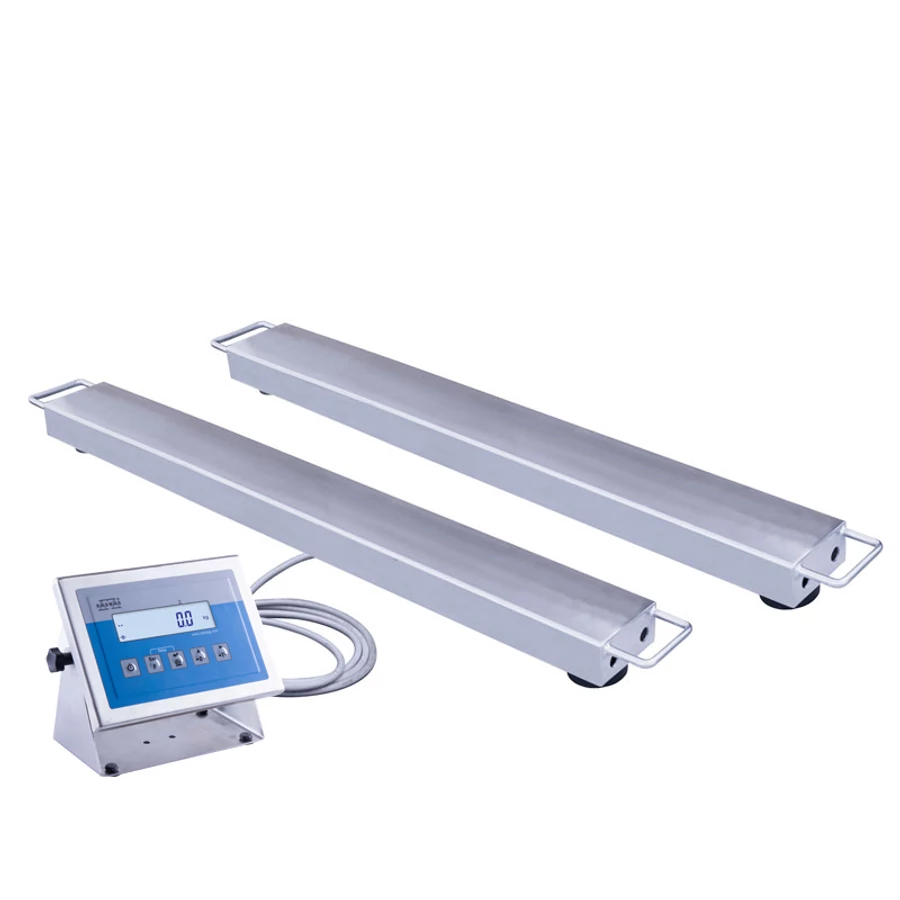

Beam scales H315/4P2 series is stable and proved four load cells weighing solution with more versatile application than standard pallet scales. The adjustable distance between the beams (up to 5 meters) enables fitting the H315/4P2/H scales to different loads (cases, long bars, heavy sections). The load to be weighed can be placed on the beams by a standard fork-lift truck.
Beam scales H315/4P2/H series is manufactured in stainless steel version. Optionally, the number of beams in a scale can be increased to 4. Beam scales features handles for easy transporting the scales to its place of use.
The scales comes standard with an indicator PUE H315 in stainless steel housing, featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 600 kg
- Readability [d]: 200 g
- Tare range: -600 kg
- Weighing pan dimensions: 2 pcs 1,2 m
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator: 40 kg
- Device dimensions: 1200×120×85 mm
- Minimum load: 4 kg
- Packaging dimensions: 1400×400×550 mm
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 3 m + 5 m
- Communication interface: RS232, USB
