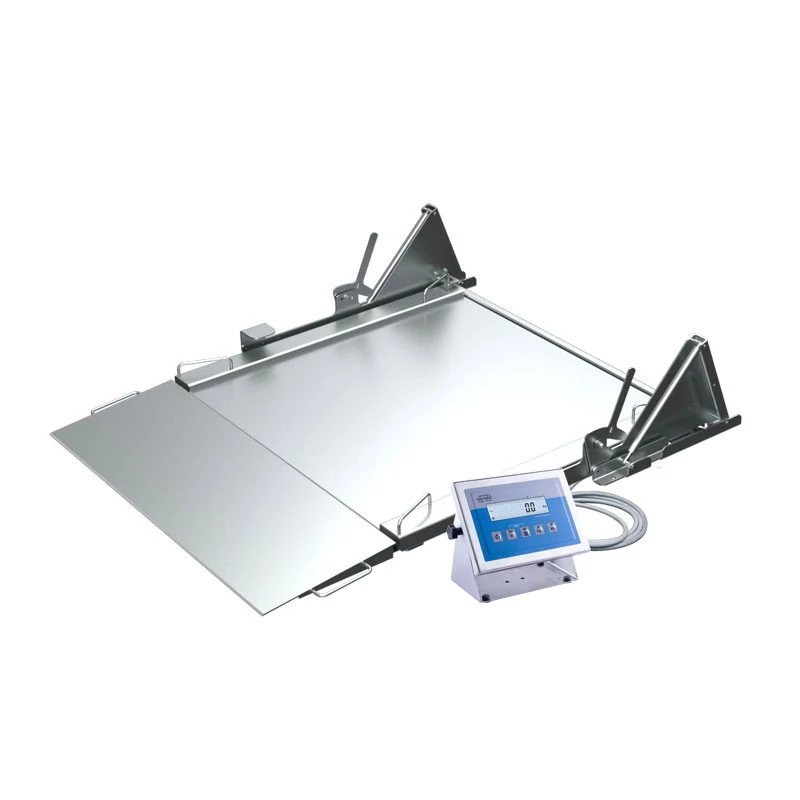

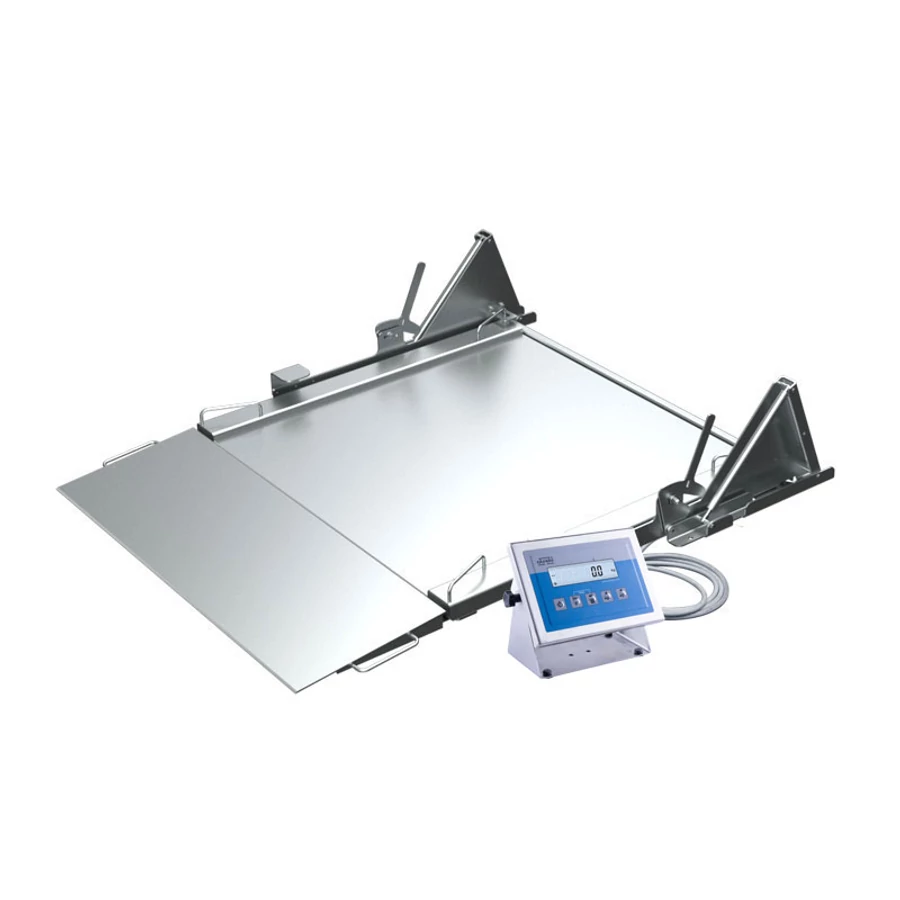

Ramp scale with stainless-steel load cells is intended for meat, fish, pharmaceutical, cosmetic and chemical industry.
The scale is equipped with LD4N system allowing lifting the platform up, useful for maintenance purposes. The mechanism enables safe platform lifting and does not require physical exertion or additional equipment. Upon platform lowering, the scale is ready to carry out measurement. There is no need for recalibration.
The scale is made of OH18N9 stainless steel and is equipped with PUE H315 indicator. On a customer request the scale can be made of steel of increased anti-corrosion resistance.
The length of the cable for connecting the indicator to the platform - 3m.
Ramp scale with LD4N system is equipped with only one ramp.
Dual range weighing instrument for an additional charge.
Since the scale is equipped with a platform lifting system, you are kindly requested to order a transport box (OSB box for the platform) for it. The transport box is necessary for the safe and efficient transport and storage of the ramp scale with the platform lifting system. Please take this item into consideration when planning and placing your order. If you have any questions, the Customer Service Department will be happy to assist you.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 600 kg
- Readability [d]: 200 g
- Tare range: -600 kg
- Weighing pan dimensions: 1100×1200 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Minimum load: 4 kg
- Packaging dimensions: 1640×1590×580 mm
- Max readability for non-verified scale: 50 g
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Net weight: 175 kg
- Gross weight: 300 kg
- Cable length: 3 m
- Communication interface: RS232, USB
