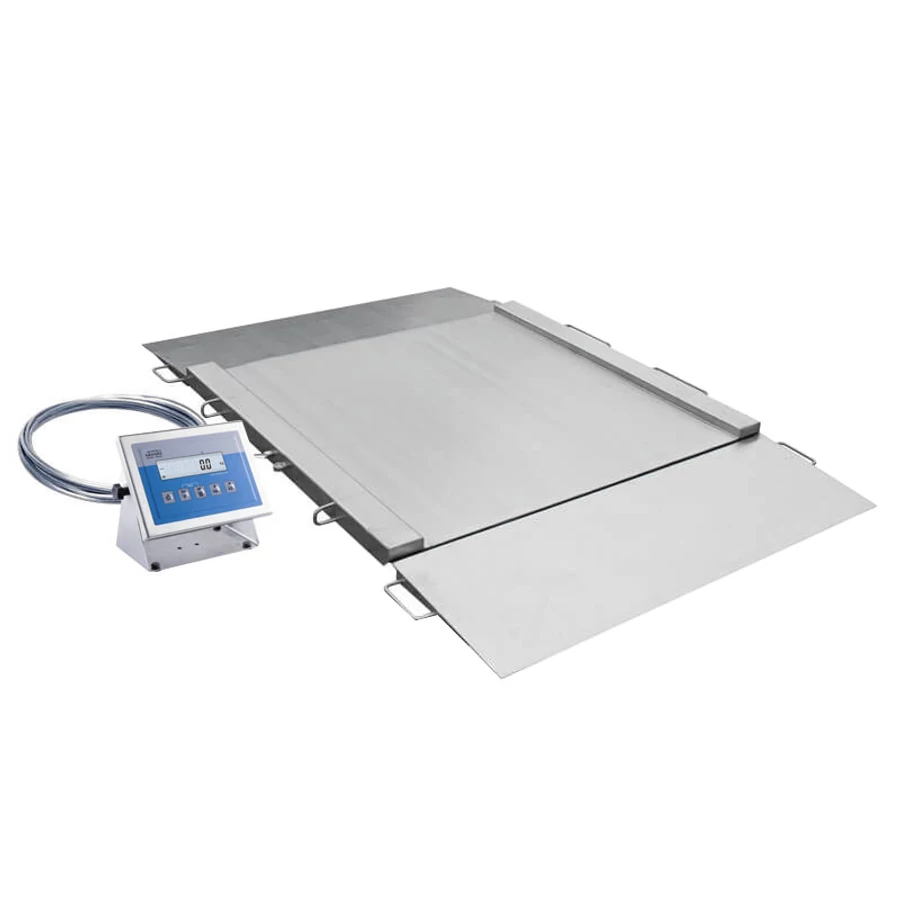

Ramp scales with stainless steel load cells is widely applied in meat, fish, pharmaceutical, cosmetic and chemical industry.
The H315/4N series is manufactured in complete stainless steel technology with stainless steel indicator PUE H315 series installed on a long cable.
Ramp scales is manufactured from OH18N9 stainless steel with IP 68. On special order, it is possible to manufacture ramp scales in upgraded anti-corrosion stainless steel version.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 150 kg
- Readability [d]: 50 g
- Tare range: -150 kg
- Weighing pan dimensions: 840×860 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator: 105 kg
- Minimum load: 1 kg
- Packaging dimensions: 1250×950×600 mm
- Max readability for non-verified scale: 20 g
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 3 m
- Communication interface: RS232, USB
