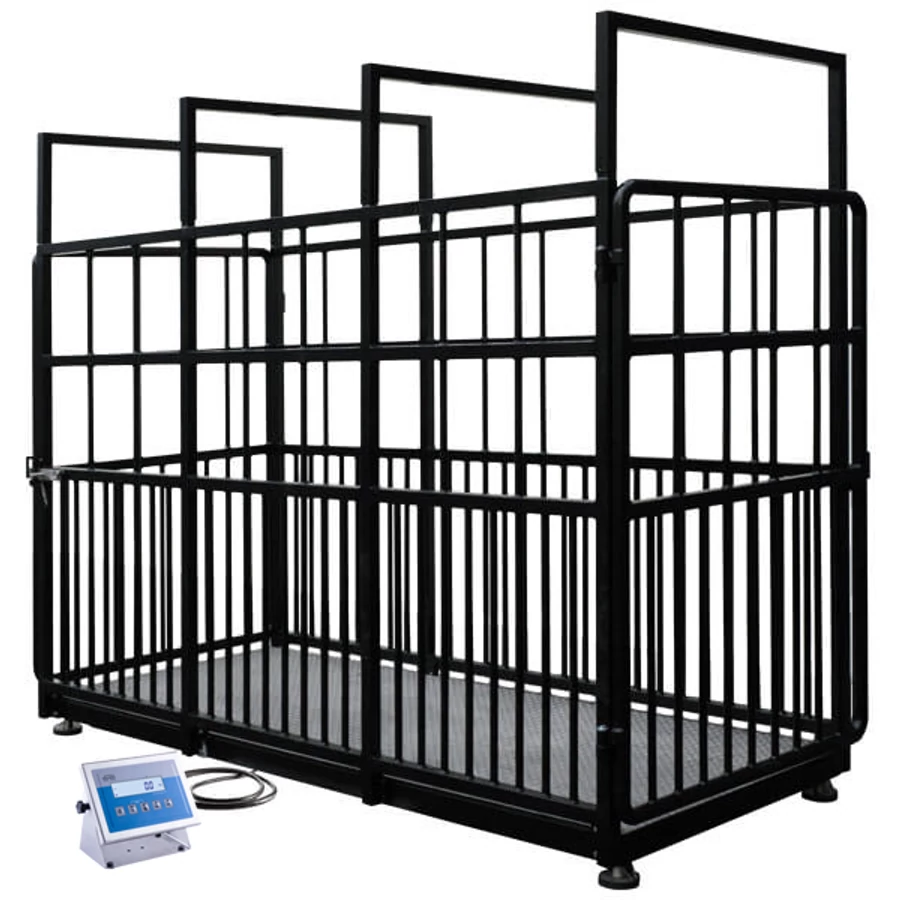

Livestock scale H315/4I series is used to fast and precise determination of mass of cattle and swine with possibility of multiple tarring in all measuring range. The weighing process is carried out with closed entering gate.
Barrier height is dependent on the weighing platform dimensions.
The scale features an indicator PUE H315 series in stainless steel housing. The indicator comprises a LCD backlit display and function buttons. The platform and the indicator are connected with a long cable for easy mounting of the indicator on a wall.
Special software with various dampening filters enables stable and precise mass readout even if the animals are moving on the platform. An optional solution is a scale for measuring all herd of cattle.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 2000 kg
- Readability [d]: 1 kg
- Tare range: -2000 kg
- Barriers height: 1,8 m
- Weighing pan dimensions: 1×2 m
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 67 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- OIML Class: III
- Minimum load: 20 kg
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 3 m
- Communication interface: RS232, USB
