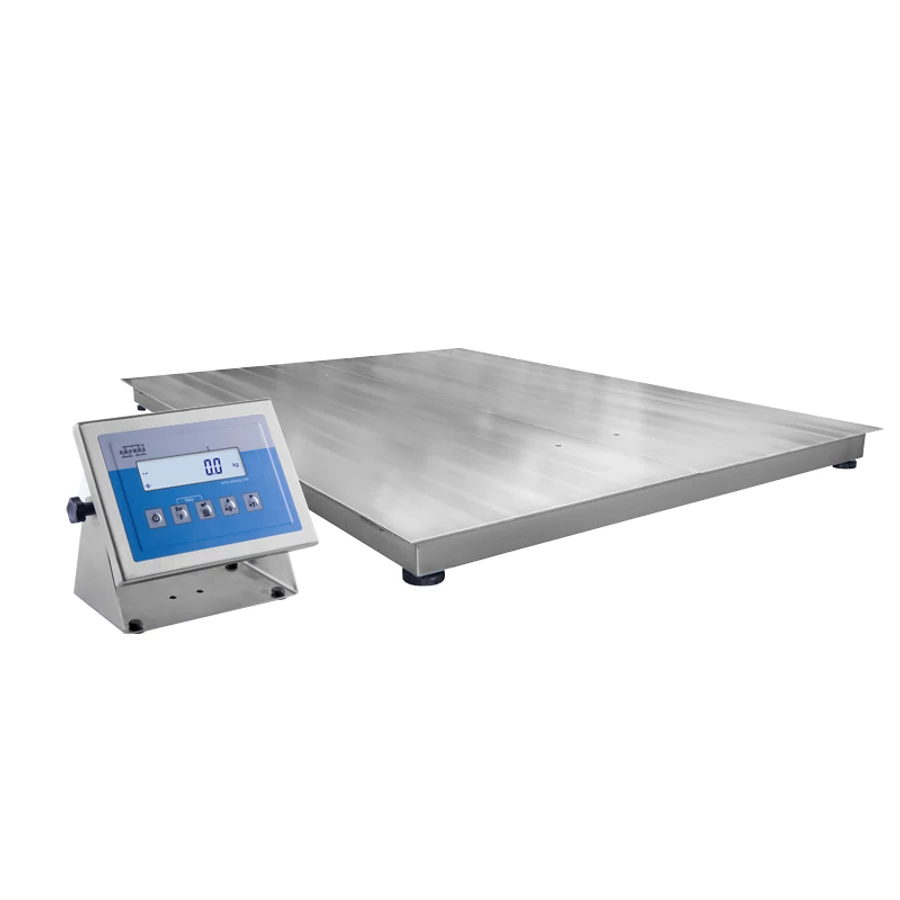

Stainless steel platform scale with four sensors
No matter where you place the load on the platform, the result will always be correct. This is due to the four sensors built into the platform. You will appreciate this especially when weighing an irregularly shaped object.
It has been with us for years, and will stay for a long time to come
The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient.
Inner power
No access to mains power? Power failure? No problem. Thanks to its internal rechargeable battery, the H315 scale works anyway (up to 7 hours).
Power supply is available at an extra charge. As standard, the scale is equipped with a RS232 cable, to which you can connect most of the accessories from our range.
Not just weighing
But also parts counting, percent weighing, animal weighing and peak hold. The power of H315’s working mods.
Do you require fast and repeatable weight measurement under difficult conditions? The H315 scale is made for that!
Work as you like
The PUE H315 terminal sits on a 3-meter cable that allows you to hang the terminal on the wall. This allows you to arrange your weighing workplace in many ways.
The power of steel
The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The membrane keyboard is another argument in the discussion of the water resistance of this scale.
If you need a dual-range scale, we can make one for you at an extra cost.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 600/1500 kg
- Readability [d]: 200/500 g
- Tare range: -1500 kg
- Weighing pan dimensions: 1200×1500 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator: 158 kg
- Weighing platform height: 88 mm
- Minimum load: 4 kg
- Max readability for non-verified scale: 50 g
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Gross weight: 181 kg
- Packaging dimensions: 1600×1300×430 mm
- Verification unit [e]: 200/500 g
- Cable length: 3 m
- Communication interface: RS232, USB
