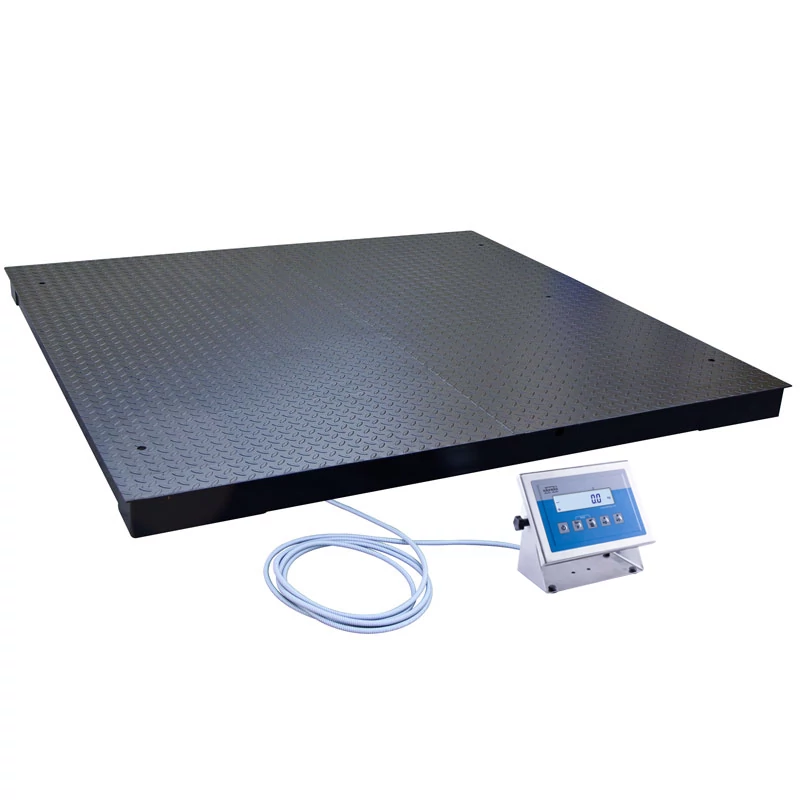

Four sensors platform scale
No matter where you place the load on the platform, the result will always be correct. This is due to the four sensors built into the platform. You will appreciate this especially when weighing an irregularly shaped object.
It has been with us for years, and will stay for a long time to come
The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient.
Inner power
No access to mains power? Power failure? No problem. Thanks to its internal rechargeable battery, the H315 scale works anyway (up to 7 hours).
Power supply is available at an extra charge. As standard, the scale is equipped with a RS232 cable, to which you can connect most of the accessories from our range.
Not just weighing
But also parts counting, percent weighing, animal weighing and peak hold. The power of H315’s working mods.
Do you require fast and repeatable weight measurement under difficult conditions? The H315 scale is made for that!
Work as you like
The PUE H315 terminal sits on a 3-meter cable that allows you to hang the terminal on the wall. This allows you to arrange your weighing workplace in many ways.
Conveniently, without ramps
You can use the scale as a pit – this allows the load to pass freely through the platform without application of ramps.
If you need a dual-range scale, we can make one for you at an extra cost.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 3000 kg
- Readability [d]: 1 kg
- Tare range: -3000 kg
- Weighing pan dimensions: 2000×2000 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 65 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator: 290 kg
- Weighing platform height: 120 ±10 mm
- OIML Class: III
- Minimum load: 20 kg
- Packaging dimensions: 2100×2100×550 mm
- Max readability for non-verified scale: 200 g
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 3 m
- Communication interface: RS232, USB
