Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on weighing platform.
H315.4 H/Z

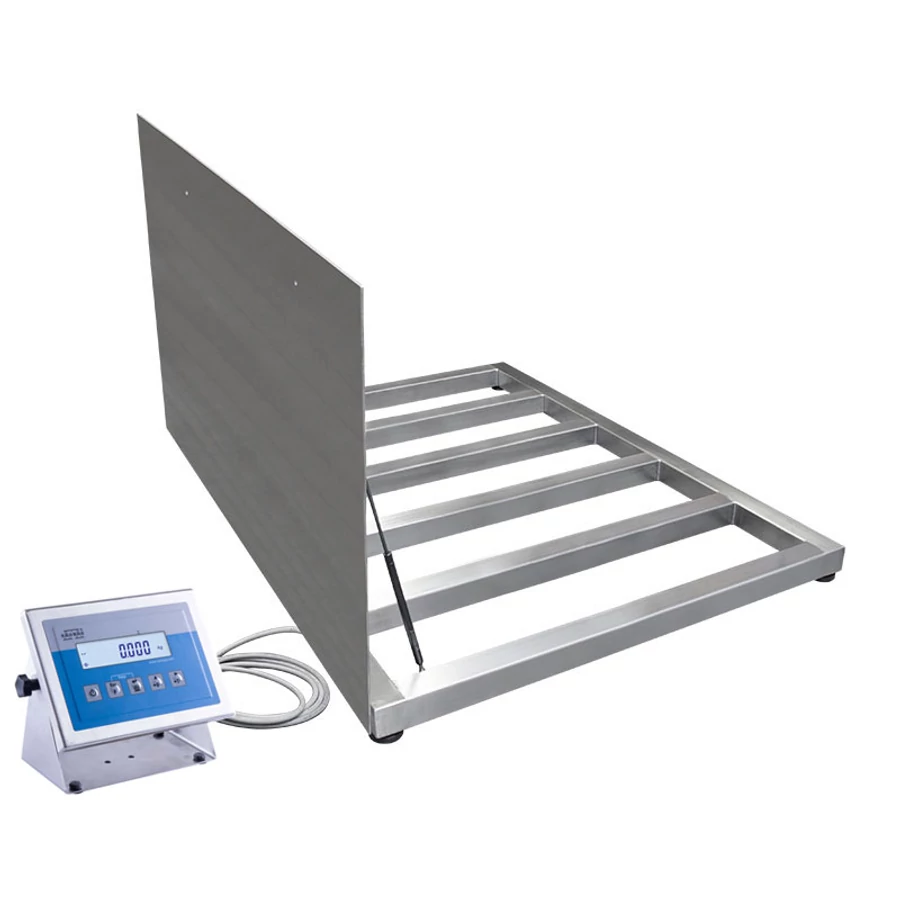

The platform scales H315.4 H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform.
The H315.4 H/Z series features a stainless steel terminal PUE H315 series with backlit LCD display and function buttons. The terminal is installed on a long cable for easy mounting it on a wall.
The scale is powered from mains, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 1500 kg
- Readability [d]: 500 g
- Tare range: -1500 kg
- Weighing pan dimensions: 1200×1200 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 68 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Scale mass with indicator and frame: 145 kg
- Weighing platform height: 88 mm
- Minimum load: 10 kg
- Max readability for non-verified scale: 100 g
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Packaging dimensions: 1400×1400×550 mm
- Cable length: 3 m
- Communication interface: RS232, USB
