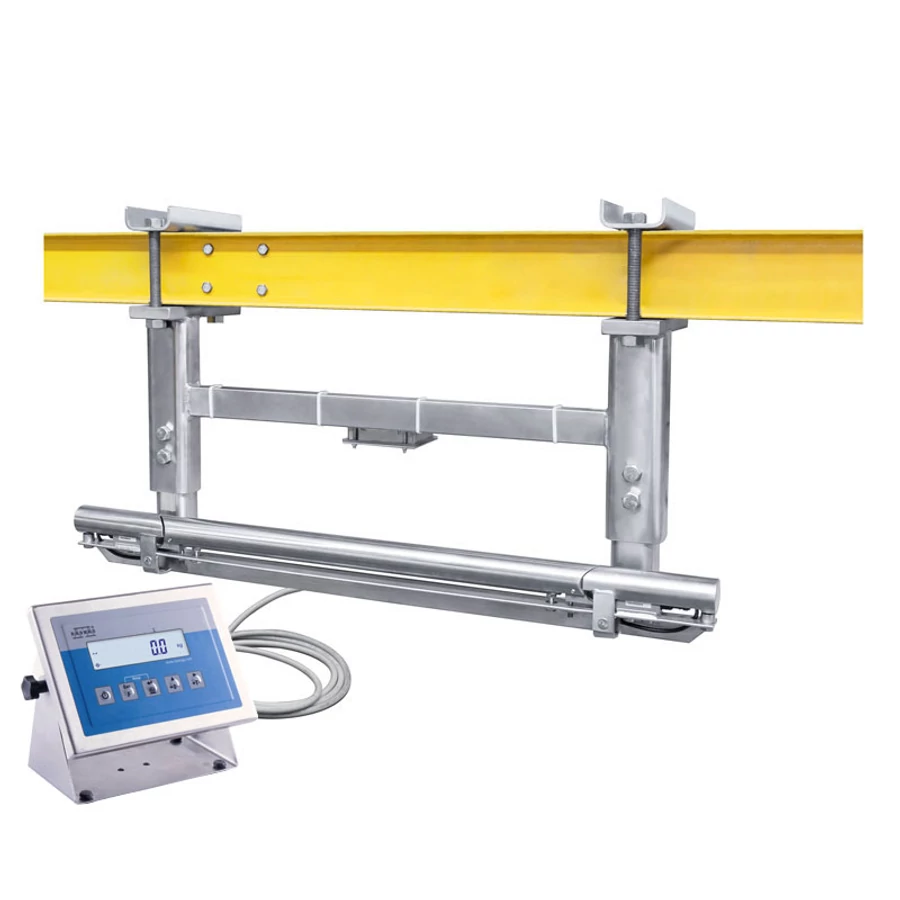

Overhead track scale H315 series is designed for weighing half carcass and porkhalf which are transported on scale’s track. The weighing process starts when a roller with measured load enters a measuring section of the track. The load cells are installed lengthwise to the weighing track which is fixed with spherical mandrels. Such design eliminates tensions in the construction.
Scales can cooperate with carcass grading equipment.
The H315 series is manufactured either in galvanized or in stainless steel version, as dual range weighing instruments. They are equipped with a stainless steel backlit LCD indicator PUE H315 installed on a cable.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 300 / 600 kg
- Readability [d]: 0,1 / 0,2 kg
- Tare range: -600 kg
- Detection line span: L= 800 mm (min. 200 mm)
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 67 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Construction: galvanized
- Minimum load: 2 kg
- OIML Class: III
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Communication interface: RS232, USB
