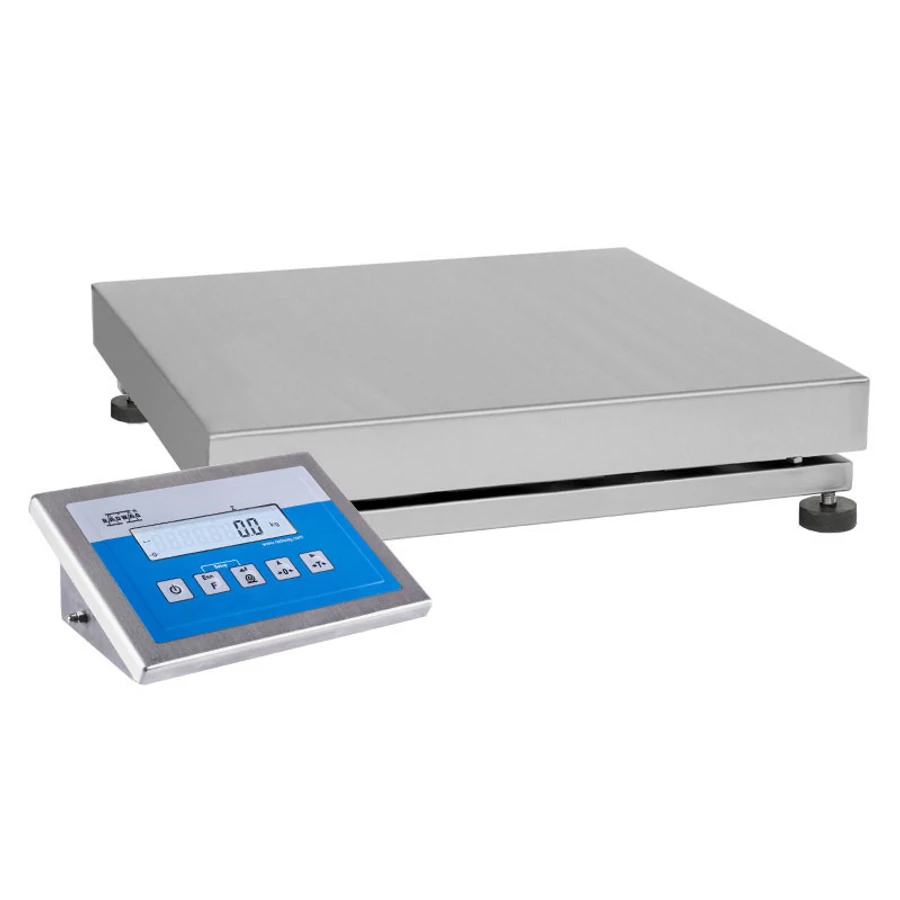

The H315 waterproof scale
Made to work in high humidity conditions and even direct contact with water. Designed for precision measurements, making it used in situations where weighing readability is crucial.
The power of steel
The use of stainless steel for the construction guarantees you a long life for the balance. It is not afraid of contact with moist objects or accidental splashes. The robustness and strength of the design of the platform scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Not just weighing
But also parts counting, percent weighing, animal weighing and peak hold. The power of H315’s working mods. Do you require fast and repeatable weight measurement under difficult conditions? The H315 scale is made for that!
It has been with us for years, and will stay for a long time to come
The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient.
Inner power
No access to mains power? Power failure? No problem. Thanks to its internal rechargeable battery, the H315 scale allows many hours of operation without mains power (up to 7 hours). Battery power supply is available at an extra charge. As standard, the scale is equipped with a RS232 cable, to which you can connect most of the accessories from our range.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- Animal weighing
Parameters
- Maximum capacity [Max]: 150 kg
- Readability [d]: 50 g
- Tare range: -150 kg
- Weighing pan dimensions: 600×600 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 67 construction, IP 68 (1h max)/69 terminal
- Display: LCD (backlit)
- Packaging dimensions: 710×710×330 mm
- OIML Class: III
- Net weight: 29,5 kg
- Gross weight: 31,8 kg
- Minimum load: 1 kg
- Max readability for non-verified scale: 5 g
- Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Optional power supply: internal rechargeable battery
- Power supply: 100 – 240 V AC 50/60 Hz
- Operation time on batteries: max 7h
- Cable length: 2,5 m
- Communication interface: RS232, USB
- Verification unit [e]: 50 g
