Leírás

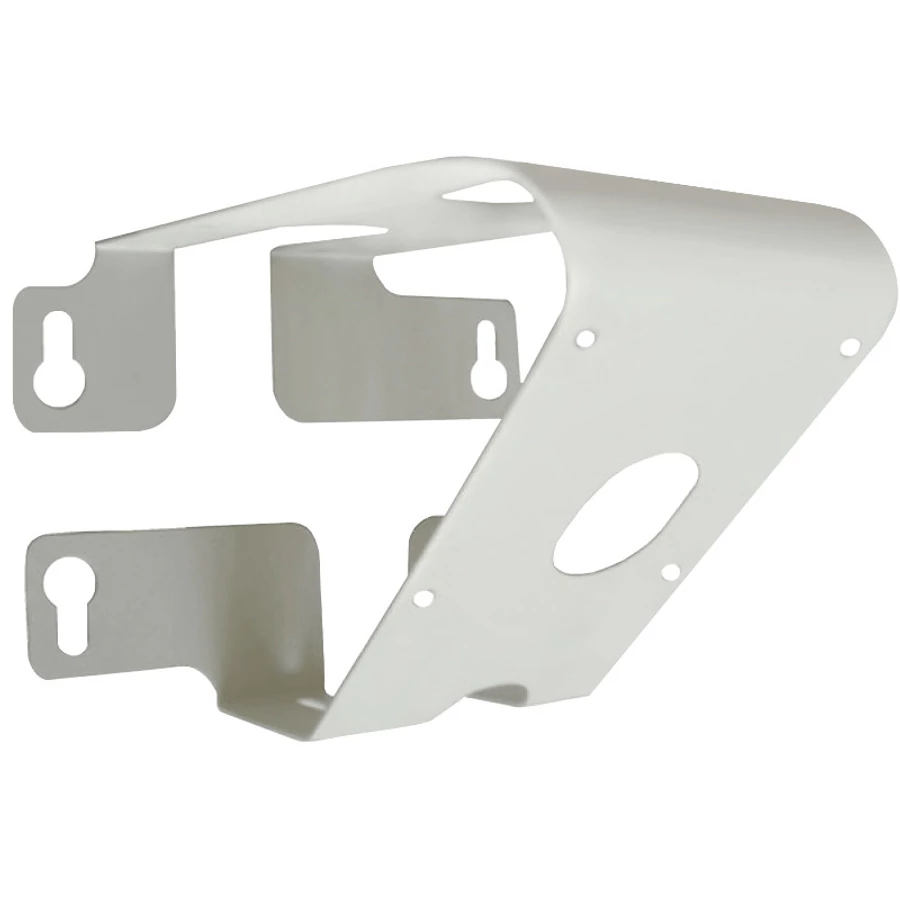

Wall-mounting kit has been designed to facilitate installation of PUE 7.1 and PUE C32 terminals on a vertical surface. The kit can be mounted in two positions.
Intended use:
Easy installation of PUE 7.1 terminal on a vertical surface;
Easy installation of PUE C32 terminal on a vertical surface;
Mounting the PUE 7.1 terminal to a wall at the angle of 80°;
Mounting the PUE C32 terminal to a wall at the angle of 80°;
Mounting the PUE 7.1 terminal to a wall at the angle of 55°;
Mounting the PUE C32 terminal to a wall at the angle of 55°.
Design:
The PUE-7-32 wall-mounting kit is manufactured of 1 mm steel, which provides sufficient rigidity. The kit is offered in powder coated mild steel version in colour corresponding to the colour of PUE 7.1 / PUE C32 housing. Multiple technological holes, make it possible to mount the kit in 8 points (4 mounting points for the PUE 7.1 / PUE C32 terminal and 4 mounting points for fixing to a vertical surface).
