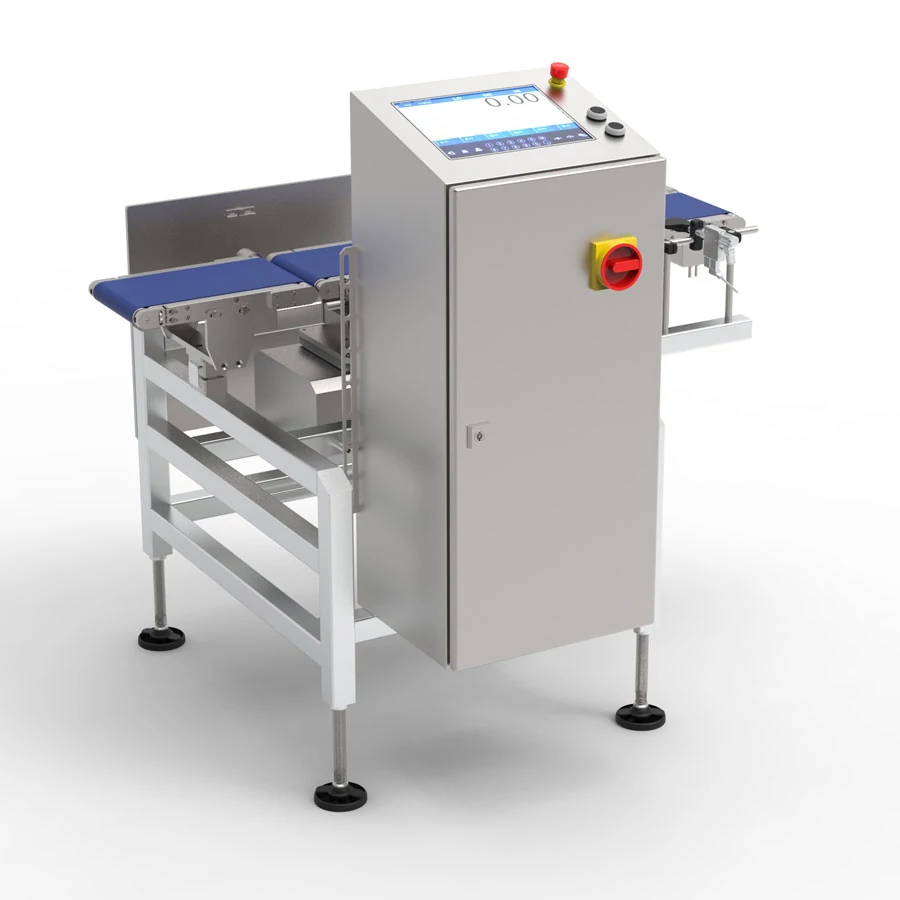

The DWM HY10 Basic Checkweigher is a compact device that guarantees 100% inspection of a production batch. It is easy to install and integrate into the production line. A number of ready-made components simplify the scale’s adaptation to the requirements of a specific production line.
Precise Measurement and Easy Operation
The device provides a capacity of up to 150 pcs/min. It guarantees precise measurement, records data to a database, rejects defective products with an integrated rejecter, and prepares a specialized inspection report. Thanks to the 10-inch display and user-friendly interface, operation of the scale is easy and comfortable.
Speed, Accuracy and Resistance
The DWM HY10 Basic Checkweigher is equipped with a reliable MWMH series measuring unit – a magnetoelectric system. MWMH guarantees high speed, readability and resistance to mechanical shock. Maintenance-free BLDC type motors were used to drive the scale. The structure and control cabinet are made of stainless steel. The correctness of data recording and storage is supervised by the SQL database system. The large, capacious database makes it possible to register any number of operators and assortments.
What Speaks to the Choice of DWM HY10 Basic Checkweigher?
Main features:
10-inch color display
Touch panel
Magnetoelectric measuring module
Brushless motors
Pneumatic discrimination system
SQL database
No limitation of assortment and operator base
Current statistics
Possibility of integration with the line and the customer’s control system.
Parameters
- Maximum capacity [Max]: 1500 - 6000 g
- Readability [d]: 0,5 - 2 g
- Material: Stainless steel, aluminium anodowane
- Protection class: IP 55
- Communication interface: RS232, Ethernet, RS485
- Optional interfaces: Profibus, Profinet, Ethernet IP, Modbus
- Capacity: max 150 pcs/min
- Power supply: 110 - 230 V AC 50 - 60 Hz
- Power consumption max.: 0,6 kVA
- Operating pressure: 6 Bar
- Conveyor velocity: max 1 m/s
- Display: 10″ colour touchscreen
- Operating temperature: +10 ÷ +40 °C
