Remarkable Throughput, Versatility of Applications

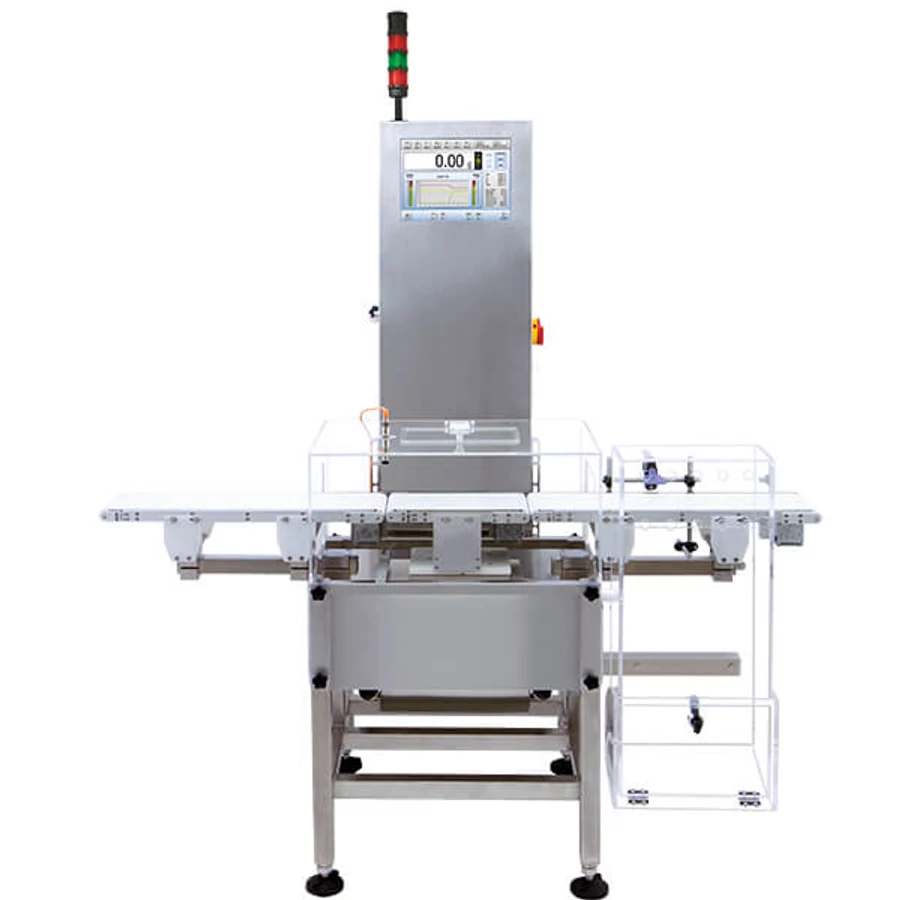

Food industry? Pharmaceutical industry? Cosmetic industry? Three questions and one answer only: DWM checkweighers.
These multifunctional devices have MID certificate, proving conformity with regulations on measures and weighing instruments
used in all the aforementioned branches of industry.
A Walking Ideal
Checkweighers are based on an electromagnetic mass converter which is a guarantee for speed and accuracy of the measurement. High resistance to overload means failure free operation, and your peaceful mind.
Do Not Set the Expectation Bar Low – This Device Will Adapt to Your Requirements
Checkweighers, due to their modular design, meet the requirements of any production line. A complete set of shields, rejecters, sensors, signalling and monitoring modules will come up to expectations of every single customer, and a vast range of transport solutions will allow one to adapt the device to the requirements of a particular product.
Convenience of Operation
Touch screen terminal, HIM, with multi-language menu, is more than just fast and easy access to all control and static functions of the device. It is also pure pleasure.
Take up the Challenges of the Future
ICommunication interfaces like Ethernet, Ethernet IP, Profinet, Profibus and access to the database system are the response to the requirements of Industry 4.0 concept.
We have equipped our scales with a special package of dedicated functions, like an extended access control module, and complete archiving of all scale states in the Audit Trail module. Thanks to this, all pharmaceutical processes you carry out are safe and accordant with GMP, and FDA 21 Part 11 requirements.
Complete Validation: IO, OQ and PQ
In order to be able to install any measuring device in the pharmaceutical industry you need validation.
A special equipment qualification package will guarantee a complete, documented validation for your checkweigher:
Installation Qualification (IQ),
Operational Qualification (OQ),
Performance Qualification (PQ)
– we provide all these.
Proved Effectiveness
With the special OEE module in E2R software, you can control the utilization rate of your machines and equipment.
Parameters
- Maximum capacity [Max]: 7500 g
- Readability [d]: 0,1 g
- Tare range: -7500 g
- Operating temperature: +5 ÷ +40 °C
- Protection class: IP 55, IP 65
- Communication interface: Ethernet, USB, RS232, I / O
- Construction: mild steel / Stainless steel
- Keypad: touch screen
- OIML Class: XIII (1), Y (a)
- Display: 12” graphic colour touchscreen
- Capacity: max 500 pcs/min
