CY10 scale’s multi functions

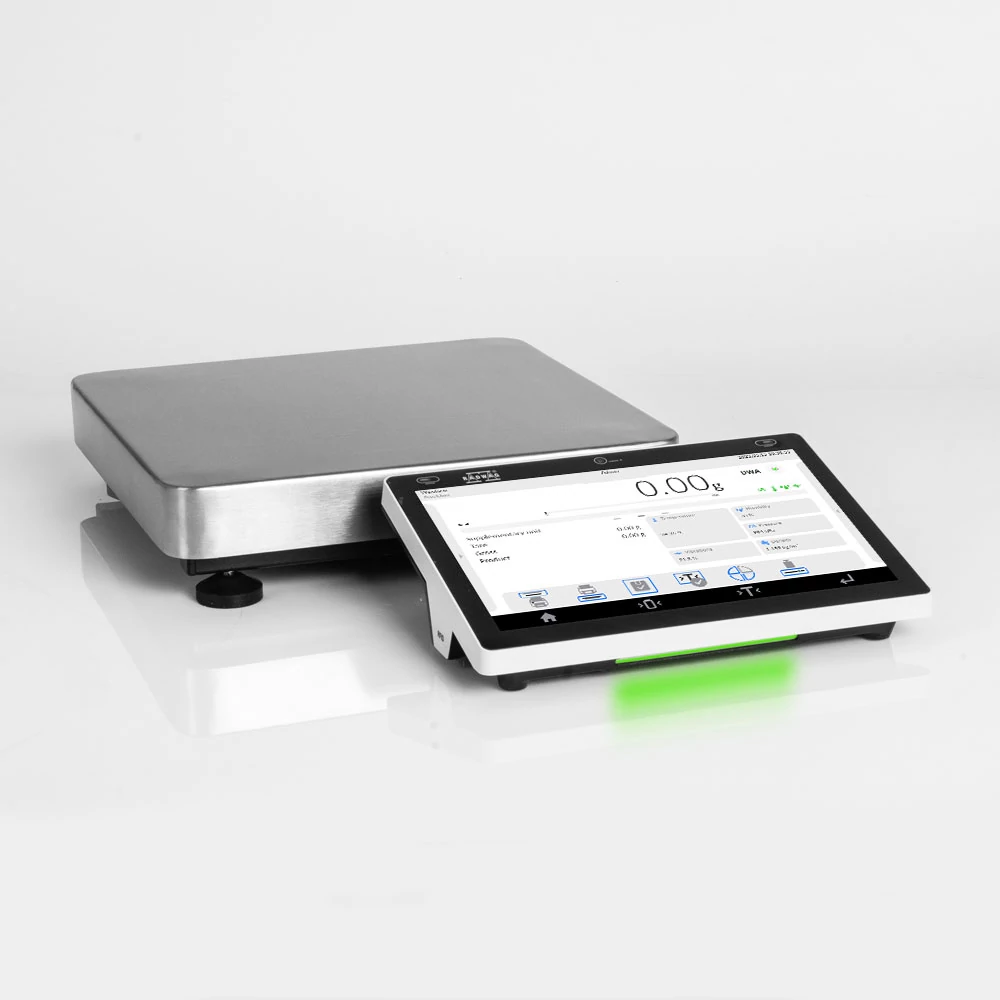

The CY10 series multifuncional scale is designed for fast, accurate and repeatable weight determination. It comes with an advanced PUE CY10 terminal, and that means working comfort with a 10-inch high-resolution display with a smooth and intuitive interface.
Software for special tasks
Thanks to the terminal advanced software, the CY10 multifuncional scale:
Cooperates with up to 2 weighing platforms
Continuously updates all statistical data after the next measurement is entered into the balance’s memory – either globally (regardless of the weighed commodity) or separately for each weighed commodity selected from the database
Has a Tare mode expanded to include End-product issue mode capability
Works with RFID tags* (accessing personal data as well as marking specific goods or recipe ingredients in the database).
Multifunctional scale, including labelling scale
If you need a labeling scale, the CY10 is the perfect solution. With a terminal that:
Cooperates with the computer program Label Editor R02
Is compatible with ZEBRA label printers
Supports single labels, bulk labels and bulk from bulk labels
Allows import/ export of label designs using a pendrive
Enables you to assign labels to goods or customers and print a global label
The CY10 series multifuncional scale can operate as a labeling scale.
Light or dark?
Which color theme will you set on your CY10 balance? Both are user-friendly and clear, but we are curious which one you like more.
Modbus TCP/IP
is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.
A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
* RFID ISO/IEC 14443 Type A, 13,56 MHz
Functions
- Autotest
- Dosing
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Newton unit measurement
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Animal weighing
- Pipettes Calibration
- Air density correction
- Density determination
- Differential weighing
- Ambient conditions monitoring
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Wi-Fi
Parameters
- Maximum capacity [Max]: 30 kg
- Display: 10″ graphic colour touchscreen
- Protection class: IP 43
- Housing: steel + ABS
- Max number of platforms: max.2
- Power supply: 12÷15V DC
- Power consumption: 1A
- Multiple range: YES
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Operating temperature: -10 ÷ +40 °C
- Minimum load: 200 g
- Readability [d]: 10 g
- Tare range: -30 kg
- Adjustment: external
- Leveling system: manual
- Weighing pan dimensions: 300×300 mm
- Net weight: 6,3 kg
- Gross weight: 7,1 kg
- Storage temperature: -25 ÷ +70 °C
- Packaging dimensions: 500×390×410 mm
- Verification unit [e]: 10 g
- Stabilization time: 2 s
- Max readability for non-verified scale: 1 g
- Cable length: 1 m
- OIML Class: III
