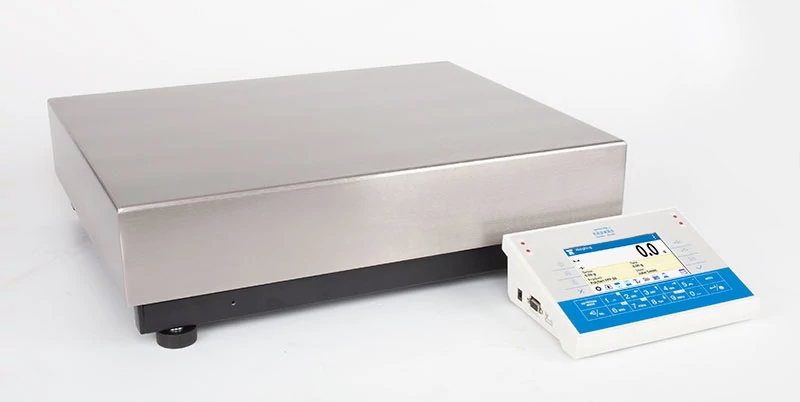

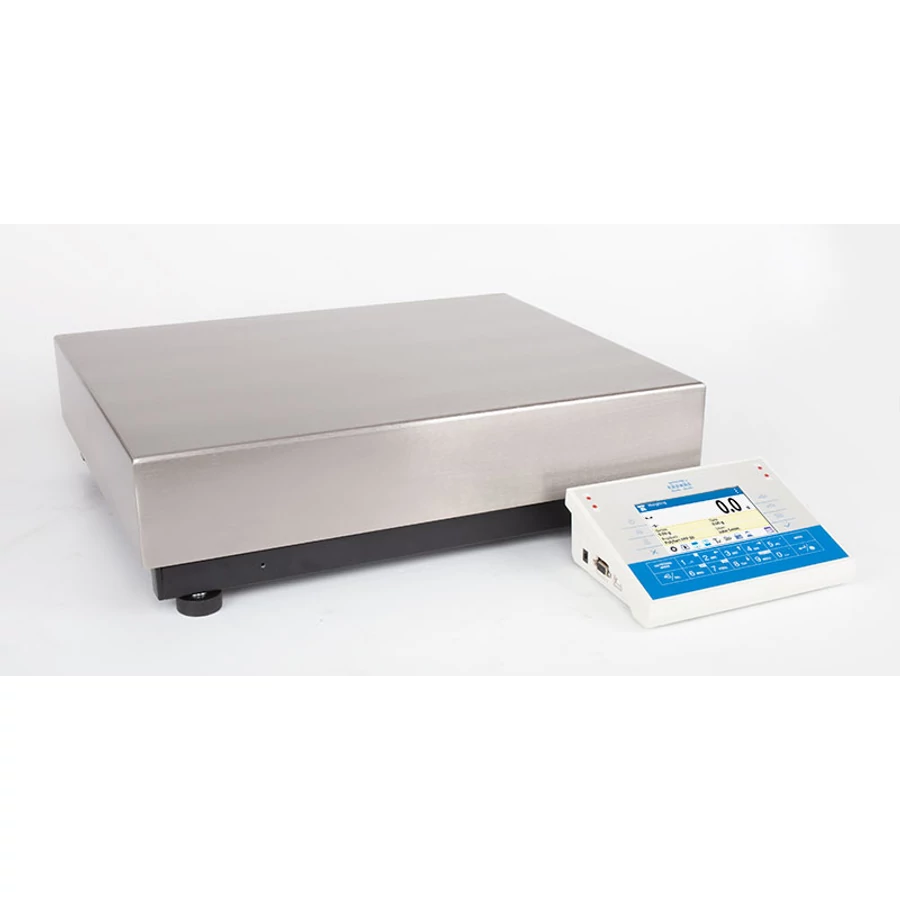

PM Balances by RADWAG – Laboratory Precision Under Industrial Conditions
Mono BLOCK® technology
The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
minimum eccentricity error over the entire range,
quick and stable measurement (achievable within 1 second),
parameter stability over time and during transport,
weighing pan dimensions adapted to the accuracy of the balance
are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on RADWAG’s enhanced MonoBLOCK® technology.
The change in the design of the monoblock has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.
PM balances also include:
robust design based on a larger and taller Monoblock,
built-in 4-point overload protection system,
IP 43 ingress protection,
internal adjustment,
5" colour display,
easy start-up, intuitive operation, and ergonomics.
Application
PM balances not only provide an accurate reading and quick measurement, but they are also versatile, allowing them to be used in a variety of industrial sectors.
Dosing, formulation-making, and parts counting are just some of the possible applications of these multi-purpose devices.
PM balances will find use wherever high-accuracy, high-load-capacity weighing equipment is required.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
Functions
- Labelling
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Newton unit measurement
- Statistics
- IR sensors
- GLP Procedures
- Animal weighing
- Density determination
- Replaceable unit
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 120 kg
- Minimum load: -
- Readability [d]: 0,2 g
- Repeatability (Max): 0,2 g
- Linearity: ±0,6 g
- Minimum weight (USP): 164 g
- Minimum weight (U=1%,k=2): 16,4 g
- Stabilization time: 1 s
- Adjustment: internal (automatic)
- Weighing pan dimensions: 400×500 mm
- Operating temperature: +10 ÷ +40 °C
- Display: 5” graphic colour
- Communication interface: 2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
- Packaging dimensions: 710×610×240 mm
- Tare range: -120 kg
- Net weight: 22 kg
- Gross weight: 24,5 kg
- Repeatability (5% Max): 0,082 g
- Protection class: IP 43
- Power supply: Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 10 – 12V DC 1A max - Preload range: 12 kg
- Leveling system: manual
