Leírás

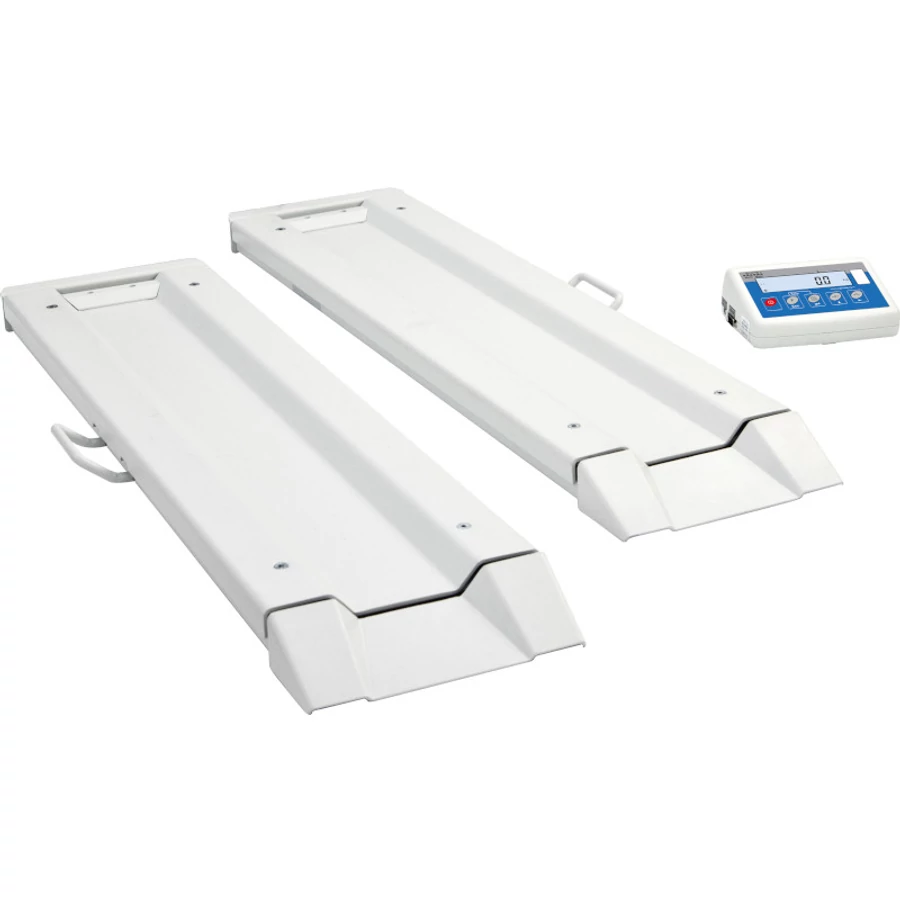

Ramp bed scale is designed to weigh a patient who lies on a bed. The construction of the bed scale enables its application for various types of beds and it is not depend on installed braking systems. Long beams of the series ensure measurement of bed’s mass independently on location. Adjustable distance between the beams (up to 2,5 meters) is appropriate for different types of beds.
The scale features an indicator PUE C315 series with backlit LCD display and 5-button keyboard. The scale is powered by mains and by accumulators 6 × AA installed inside indicator's housing.
The bed scales utilizes the most recent technologies on load cell design, providing:
light construction (single beam mass is approximately 8 kg);
ease of transportation;
easy running onto the beams (beam height: approximately 18mm).
Functions
- Internal battery
- Peak hold
- GLP Procedures
- ALIBI Memory
- BMI
Parameters
- Maximum capacity [Max]: 300 kg
- Readability [d]: 100 g
- Tare range: -300 kg
- Operating temperature: 0 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Operation time on batteries: up to 8 h
- Display: LCD (backlit)
- Communication interface: RS232
- OIML Class: III
- Power consumption max.: 5 W
- Net weight: 16 kg
- Gross weight: 17,5 kg
- Packaging dimensions: 1150×400×110 mm
- Optional interfaces: RS232
