Leírás

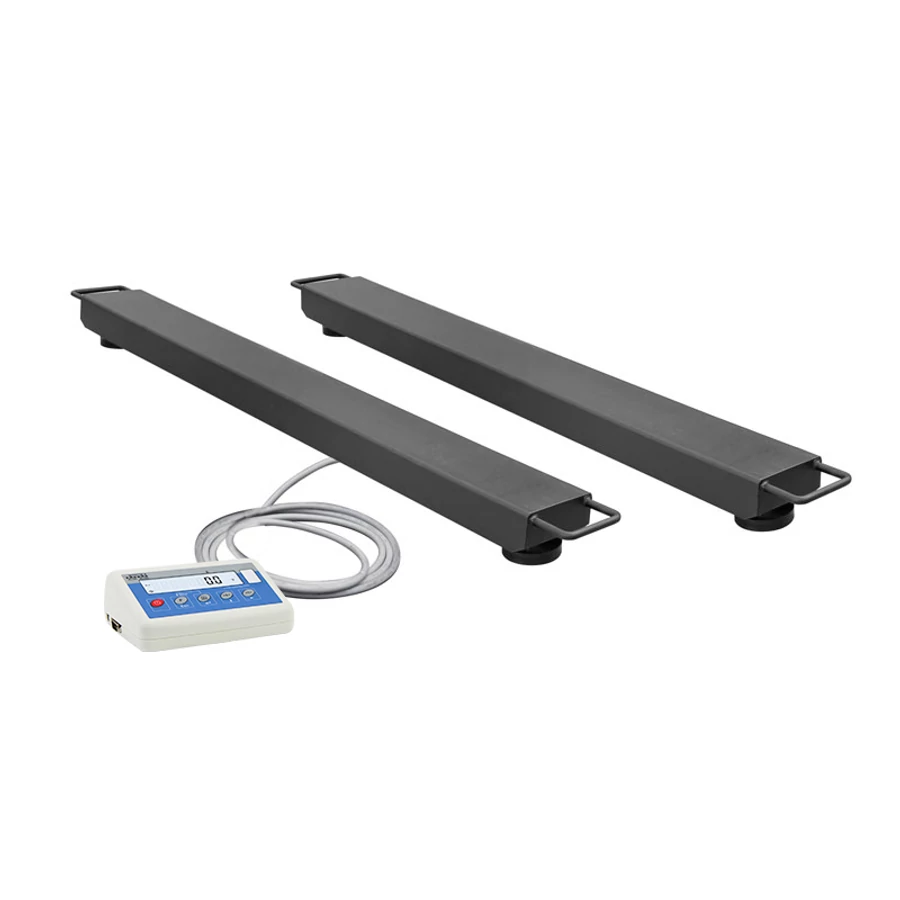

Beam scales C315.4P2 series is stable and proved four load cells weighing solution with more versatile application than standard pallet scales. The adjustable distance between the beams (up to 5 meters) enables fitting the C315.4P2 scales to different loads (cases, long bars, heavy sections). The load to be weighed can be placed on the beams by a standard fork-lift truck.
Beam scales C315.4P2 series is manufactured in mild steel powder coated version. Optionally, the number of beams in a scale can be increased to 4. Beam scales features handles for easy transporting the scales to its place of use.
The scales comes standard with an indicator PUE C315 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 2000 kg
- Readability [d]: 1000 g
- Tare range: -2000 kg
- Weighing pan dimensions: 2 pcs 2 m
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 67 construction, IP 43 terminal
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Display: LCD (backlit)
- Scale mass with indicator: 53 kg
- Device dimensions: 2000×120×105 mm
- Operation time on batteries: max 8h
- Minimum load: 20 kg
- OIML Class: III
- Power consumption max.: 5 W
- Cable length: 3 m + 5 m
- Communication interface: RS232
- Optional interfaces: RS232
