Leírás

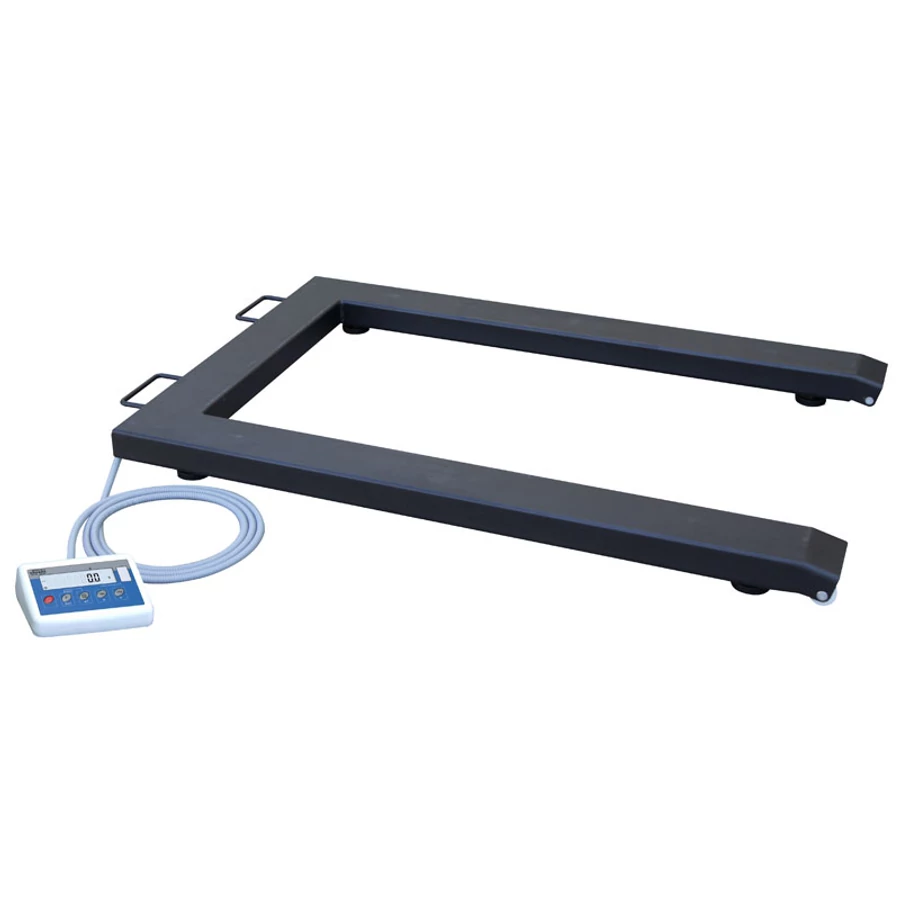

Pallet scales is stable and proved 4 load cell construction designed for weighing pallets. The load to be weighed can be placed on the platform by a standard fork-lift truck. The pallet scales C315.4P series is manufactured in mild steel powder coated version.
The H315/4P series features wheels and handles for easy transporting the scales to its place of use. The scales comes standard with an indicator PUE C315 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 600 kg
- Readability [d]: 200 g
- Tare range: -600 kg
- Weighing pan dimensions: 840×1200 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 65 construction, IP 67 cell, IP 43 terminal
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Display: LCD (backlit)
- Scale mass with indicator: 43 kg
- Device dimensions: 1322×840×85 mm
- Operation time on batteries: max 8h
- Minimum load: 4 kg
- Packaging dimensions: 1400×900×430 mm
- Max readability for non-verified scale: 200 g
- OIML Class: III
- Power consumption max.: 5 W
- Cable length: 3 m
- Communication interface: RS232
- Optional interfaces: RS232
