Leírás

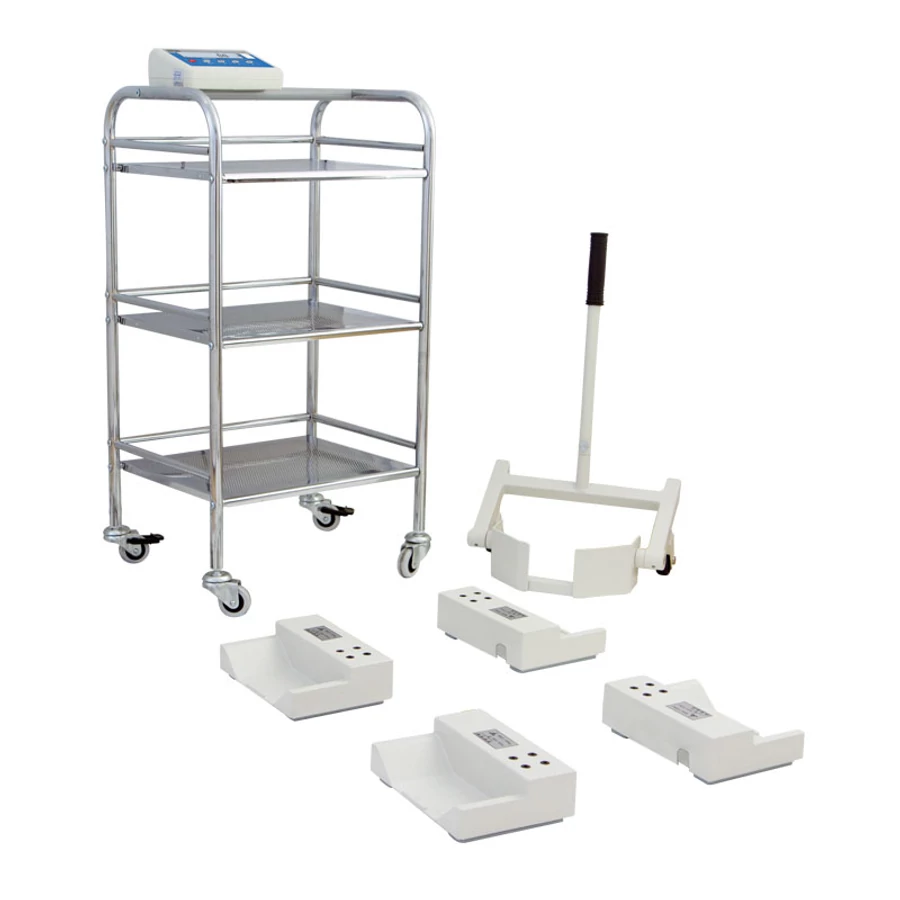

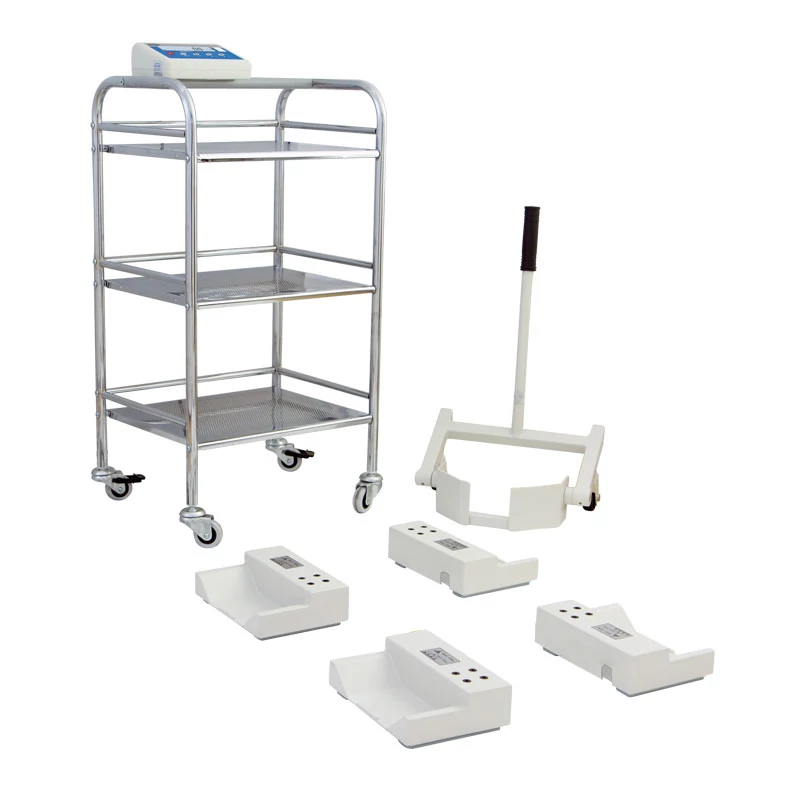

Bed scales series is a precise weighing instruments verified in class III, designed for weighing a patient who lies on a bed.
Four weighing modules connected through cables enable placing the scale under a bed of optional size. Lifting the bed is very simple with a jack specially designed for this purpose (it is designed for wheels size between 100 and 200 mm).
The scales comes standard with an indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard for simple operation of basic scale functions.
Scale is transported on a trolley, which is simultaneously a stand for the scale indicator.
Functions
- Internal battery
- Peak hold
- GLP Procedures
- ALIBI Memory
- BMI
Parameters
- Maximum capacity [Max]: 500 kg
- Readability [d]: 200 g
- Tare range: -500 kg
- Operating temperature: 0 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Operation time on batteries: up to 8 h
- Display: LCD (backlit)
- Communication interface: RS232
- OIML Class: III
- Power consumption max.: 5 W
- Net weight: 18,5 kg
- Gross weight: 28 kg
- Packaging dimensions: 390×820×360 mm
- Optional interfaces: RS232
