Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load
positioning on the weighing platform.
The platform scales

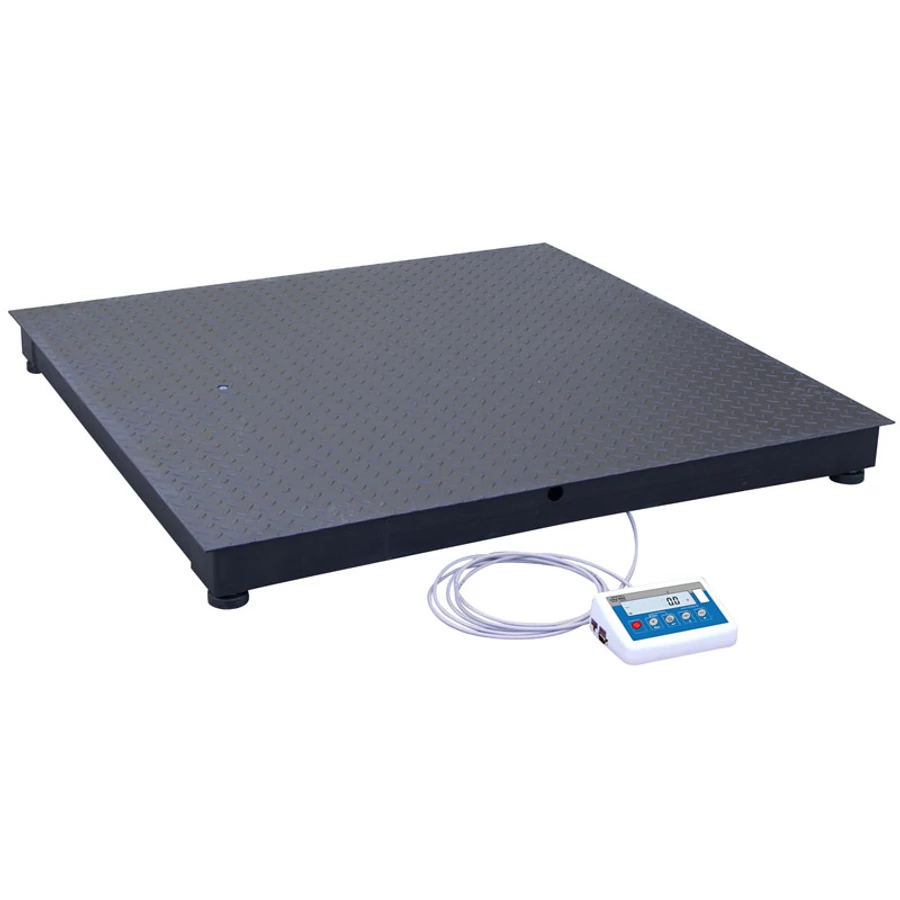

C315.4 series is made of mild steel powder coated construction of the weighing platform. The platform comprises 4 load cells connected to an terminal PUE C315 series featuring backlit LCD display and 5 function buttons.
The weighing platform and the terminal are connected through a long cable enabling hanging the terminal on a wall.
The C315.4 series is available in pit version for easy placing heavy loads on the weighing platform without application of ramps.
Scales is available in dual range version on surcharge.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Maximum capacity [Max]: 60 kg
- Readability [d]: 0,02 kg
- Tare range: -60 kg
- Weighing pan dimensions: 1000×1000 mm
- Operating temperature: -10 ÷ +40 °C
- Relative humidity: 10% ÷ 85% RH no condensation
- Protection class: IP 65 construction, IP 43 terminal
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Display: LCD (backlit)
- Scale mass with indicator: 80 kg
- Weighing platform height: 116 ±6 mm
- OIML Class: III
- Operation time on batteries: max 8h
- Minimum load: 0,4 kg
- Packaging dimensions: 1100×1000×500 mm
- Max readability for non-verified scale: 20 g
- Power consumption max.: 5 W
- Cable length: 3 m
- Communication interface: RS232
- Optional interfaces: RS232
