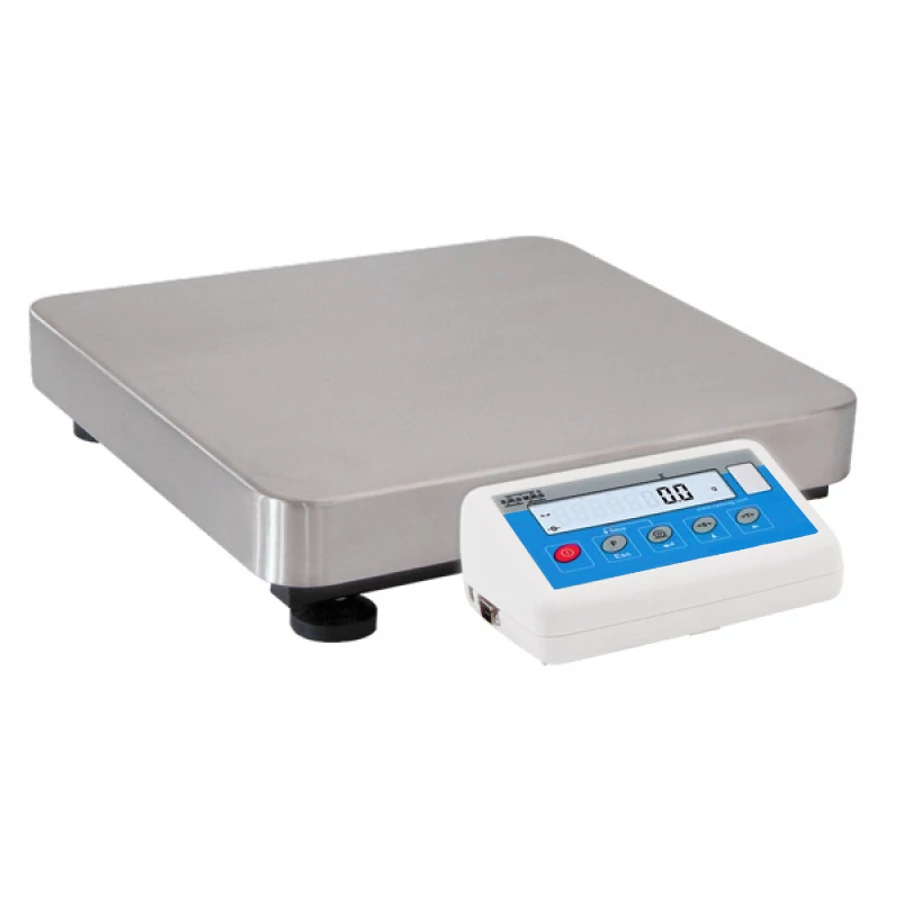

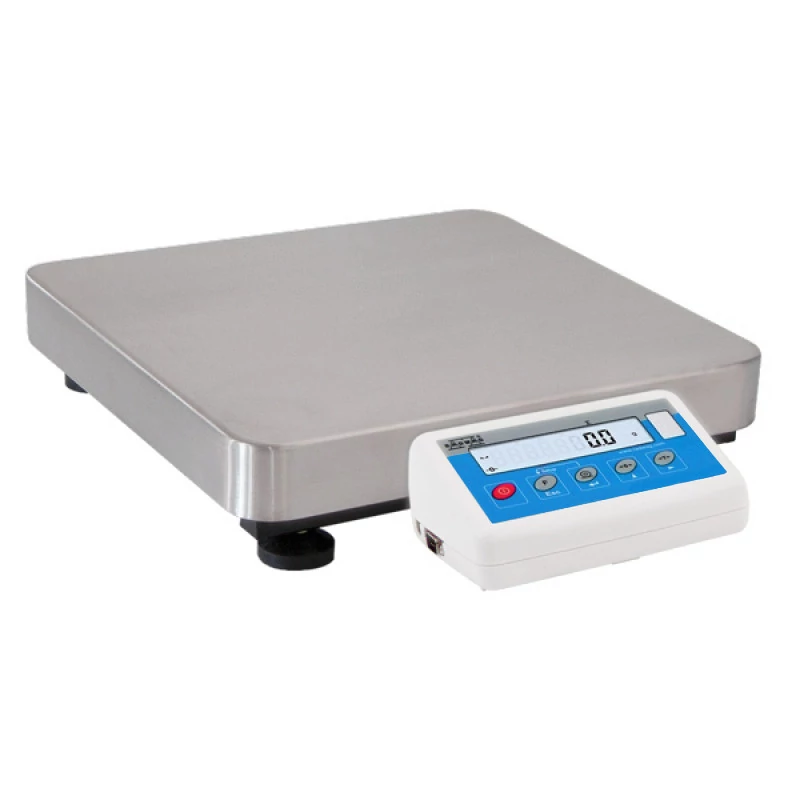

C315 Load Cell Platform Scale
Precision weight determination in light industrial environments at an even lighter price. Wherever fast weighing is important.
The C315 scale
is equipped with the PUE C315 weighing terminal with a backlit LCD display. This long-established technology guarantees reliability and low power consumption, and most importantly, a very long display life.
Don’t worry about robustness
The construction of the scale is made of powder-coated steel with a stainless steel weighing pan. This guarantees you work for many years, and what’s more, powder-coated steel is more environmentally friendly than traditional painting methods.
You will not run out of energy
The scale has two power sources: mains and rechargeable. Thanks to its well-designed electronics and LCD display, the device consumes only 5W of energy, which will allow you to work for up to 8 hours without mains power.
You get battery power as standard.
Functions
- Plus/Minus Control
- Percent Weighing
- Totalizing
- Parts counting
- Internal battery
- Peak hold
- Newton unit measurement
- GLP Procedures
- Animal weighing
- ALIBI Memory
Parameters
- Display: LCD (backlit)
- Power supply: 100 – 240 V AC 50/60 Hz and battery
- Protection class: IP 65 construction, IP 43 terminal
- Relative humidity: 10% ÷ 85% RH no condensation
- Operating temperature: -10 ÷ +40 °C
- Weighing pan dimensions: 300×300 mm
- Tare range: -6 kg
- Readability [d]: 1/2 g
- Minimum load: 20 g
- Maximum capacity [Max]: 3/6 kg
- Packaging dimensions: 570×390×170 mm
- Net weight: 5,3 kg
- Gross weight: 6,1 kg
- Indicator: C315
- Construction: mild steel St3S
- Weighing pan material: Stainless steel AISI304
- OIML Class: III
- Verification unit [e]: 1/2 g
- Operation time on batteries: max 8h
- Power consumption max.: 5 W
- Storage temperature: -10 ÷ +50 °C
- Communication interface: RS232
- Optional interfaces: RS232
