The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 5 kg to 20kg for E1 class and lower.
Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

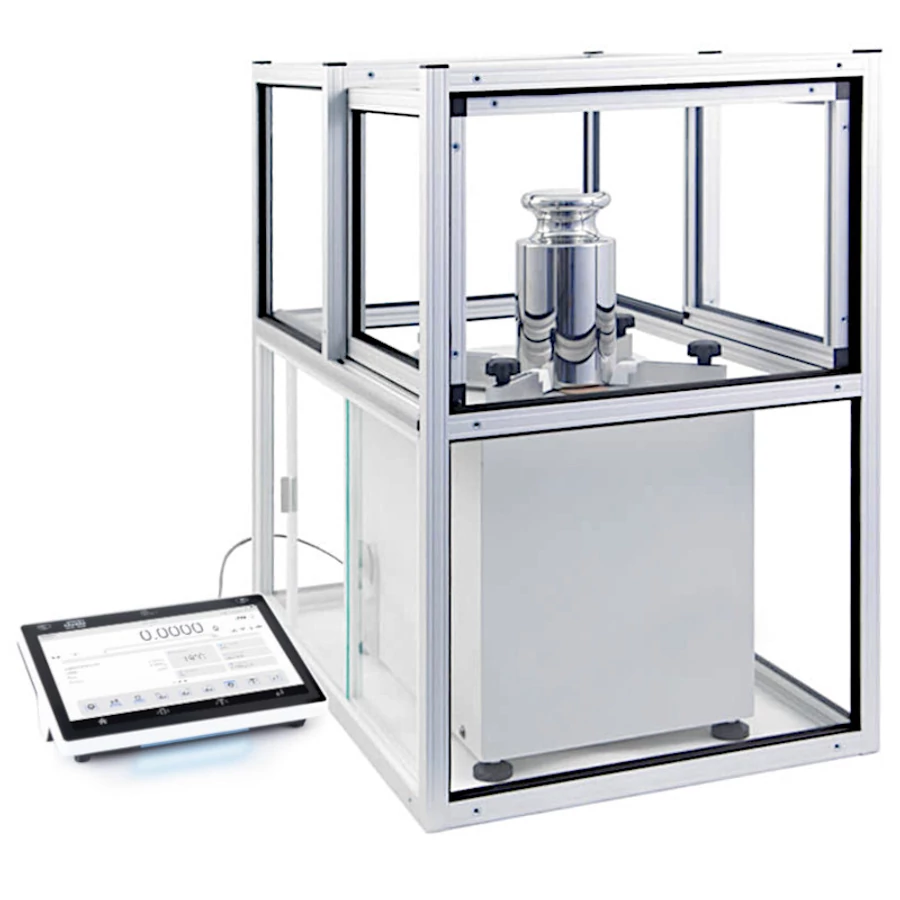

Mass comparator APP 5Y.KO series comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
High measuring accuracy is guaranteed by semi-automatic adjustment system with external mass standard. The weighing pan made of aluminium is covered with cork layer and features centering holders for the weights. The APP 5Y.KO series features an intuitive menu supporting a user in instrument operation.
Correct operation of the mass comparator requires applying a special anti-draft shield which comes standard with the instrument.
Parameters
- E1 Calibration Range: 20 kg
- E2 Calibration Range: 10 kg ÷ 20 kg
- F1 Calibration Range: 2 kg ÷ 20 kg
- F2 Calibration Range: 1 kg ÷ 20 kg
- M1 Calibration Range: 500 g ÷ 20 kg
- M2 Calibration Range: 200 g ÷ 20 kg
- Maximum capacity [Max]: 30,5 kg
- Readability [d]: 1 mg
- Stabilization time: 20 s
- Weighing pan dimensions: ø220 (ø300) mm
- Electric compensation range: 100 g ÷ 30,5 kg
- Adjustment: external
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h
- Relative humidity: 30% ÷ 70%
- Relative humidity change rate: ±5%/4h
- Weighing device dimensions: 454×275×200 mm
- Packaging dimensions: 1160×650×700 mm
- Eccentricity (tested load): 2d / 1 mm
- Supplementary weights internal: -
- Supplementary weights external: -
- Chamber packaging size: 960×825×730 mm
- Anti-draft chamber dimensions: 700×440×550 mm
- Standard repeatability [5% Max]: 3 mg
- Standard repeatability [Max]: 3 mg
- Permissible repeatability: 5 mg
- Net weight: 24 kg
- Gross weight: 38 kg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
