Application:

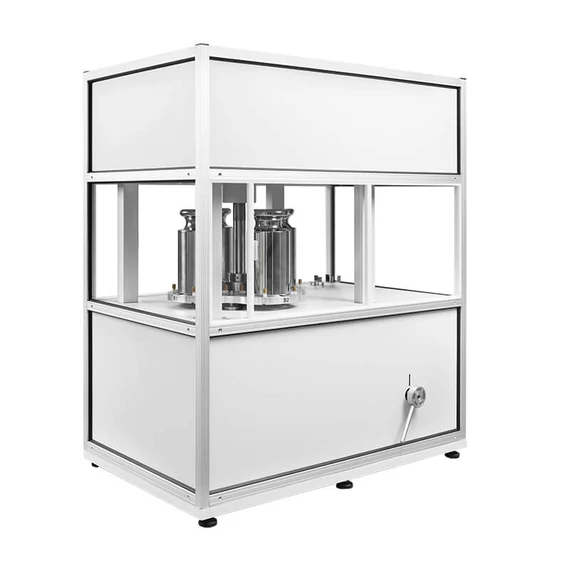

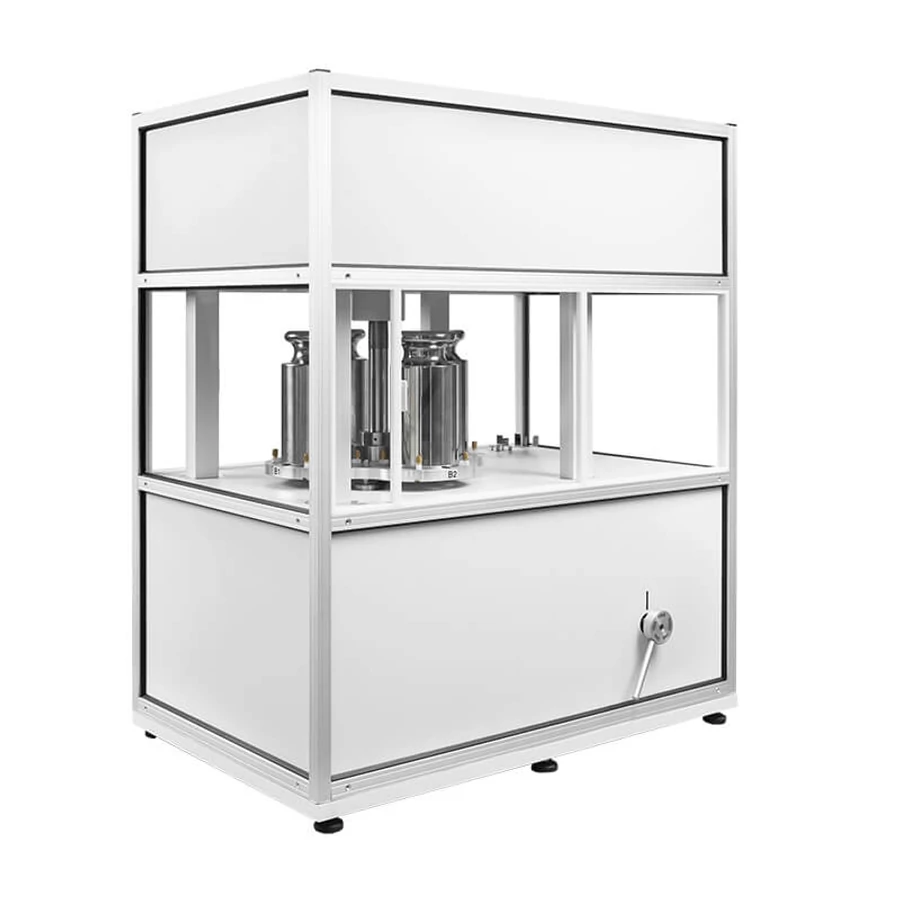

Automatic mass comparator AK-4/10000 series is intended to automatic determination of weights mass deviations with operator’s activity limited to the minimum. The comparator enables determining deviations of three tested weights in a single cycle. AK-4/10000 is designed to compare weights from 1 kg to 10 kg. The instrument is commonly applicable in mass measuring laboratories, and particularly in certification units for weights classes E and F.
Design and functionality:
The supervising part of the mass comparator is a digital module which cooperates with a controller of instrument’s mechanical components. The digital module and the automatic loader are located in mass comparator’s weighing chamber. The instrument is operated by means of digital display which is plugged to mass comparator’s controller. The supervising elements are not integrated with mass comparator’s mechanical parts, thus enabling separation of instrument’s weighing chamber from ambient conditions influence.
Parameters
- Packaging dimensions: 1000×900×685 mm
- Weighing device dimensions: 800×500×930 mm
- Power supply: 100 – 240 V AC 50/60 Hz
- Relative humidity: 40% ÷ 60%
- Relative humidity change rate: ±5%/12h (3%/4h)
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Supplementary weights external: -
- Supplementary weights internal: half automatic
- Stabilization time: 30 s
- Weighing pan dimensions: ø100 mm
- Electric compensation range: -10 g ÷ +50 g
- Readability [d]: 0,01 mg
- Maximum capacity [Max]: 10,05 kg
- F2 Calibration Range: 500 g ÷ 10 kg
- Adjustment: external
- F1 Calibration Range: 500 g ÷ 10 kg
- E2 Calibration Range: 500 g ÷ 10 kg
- E1 Calibration Range: 500 g ÷ 10 kg
- Eccentricity (tested load): 0 mg
- Chamber packaging size: 1100×800×1150 mm
- Net weight: 91 kg
- Gross weight: 141 kg
- Standard repeatability [5% Max]: 15 µg
- Standard repeatability [Max]: 20 µg
- Permissible repeatability: 40 µg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
