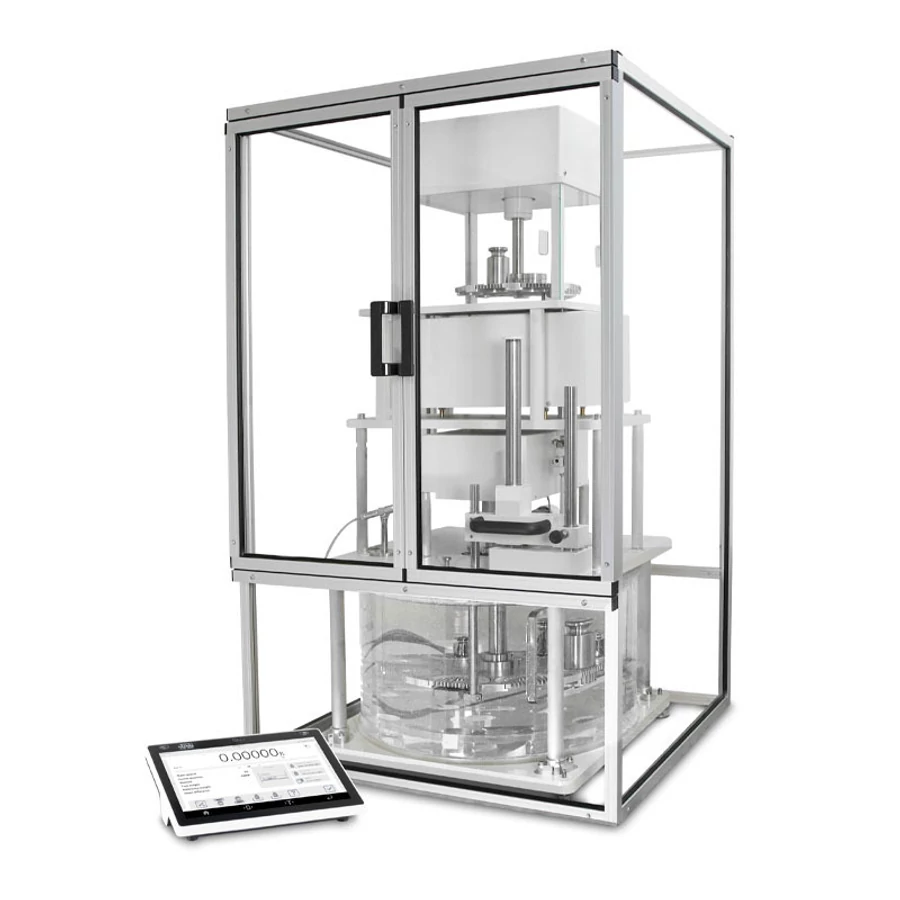

The AGV-8/1000 automatic comparator determines density and volume of mass standards of class E1 and lower in accordance with OIML R111. It is characterized by the highest accuracy and measurement stability ranging between 1g and 1kg.
The AGV-8/1000 automatic comparator enables density determination to be carried out simultaneously for 7 mass standards using one reference weight.
The comparator features specially designed feeder to load and unload the magazine with mass standards. The device is equipped with an additional circulator eliminating air bubbles and a top-class liquid temperature sensor of 0.001 ˚C accuracy. A weighing pan suspended on wires eliminates the eccentricity and minimizes the influence of liquid surface tension.
Dedicated software enables to determine mass standards density and calculate uncertainty using A method according to OIML R111. It also allows to determine (verify) liquid density.
Parameters
- Magazine positions: 8
- Supplementary weights external: 500 g, 300 g, 100 g, 100 g
- Adjustment: external
- Electric compensation range: -10 g ÷ +110 g
- Weighing pan dimensions: ø60 mm
- Stabilization time: 30 s
- Readability [d]: 0,01 mg
- Maximum capacity [Max]: 1110 g
- E1 Calibration Range: 1 g ÷ 1 kg
- Operating temperature: +15 ÷ +30 °C
- Operating temperature change rate: ±0,5°C/12h (±0,3°C/4h)
- Relative humidity: 40% ÷ 60%
- Power supply: 100 – 240 V AC 50/60 Hz
- Weighing device dimensions: 690×710×1060 mm
- Object diameters: 5-94 mm
- Relative humidity change rate: ±5%/12h (3%/4h)
- Storage temperature: -20 ÷ +50 °C
- Standard repeatability [5% Max]: 0,04 mg
- Standard repeatability [Max]: 0,05 mg
- Permissible repeatability: 0,08 mg
- Display: 10″ graphic colour touchscreen
