The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 kg to 50kg for F2 class and lower.
The comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

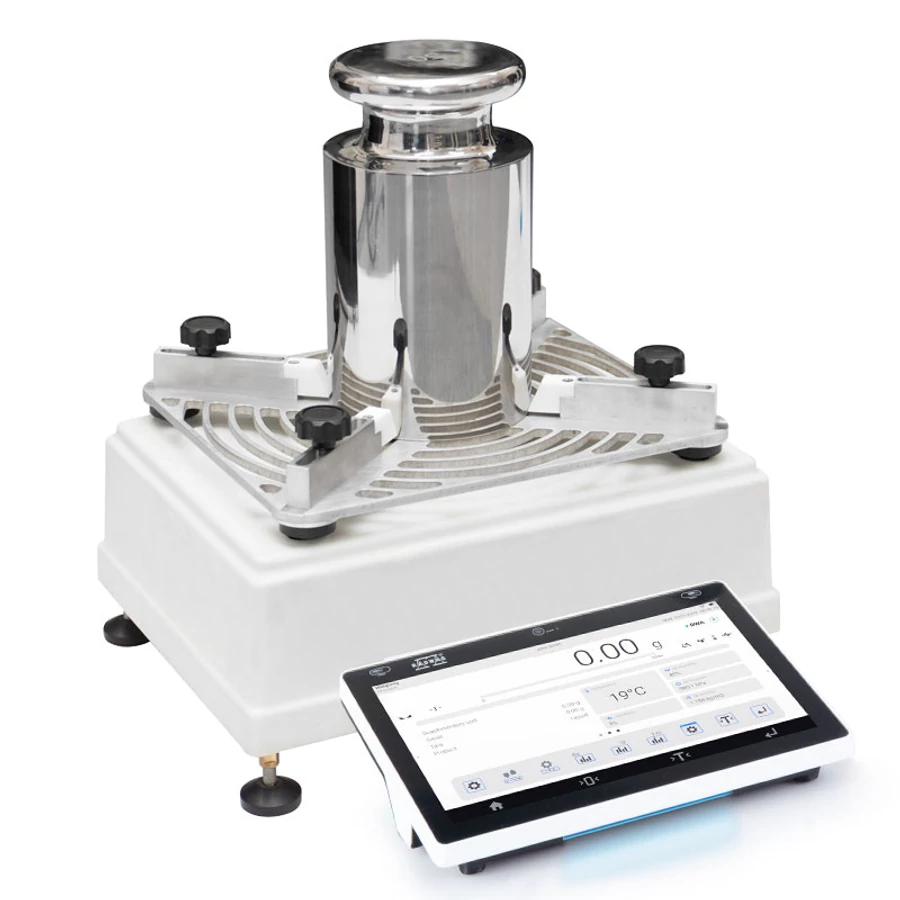

Mass comparator 5Y.PM.KB series comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
High measuring accuracy is guaranteed by semi-automatic adjustment system with external mass standard. The weighing pan is made of aluminium and features holders for centering the tested mass standard. The 5Y.PM.KB series features an intuitive menu supporting a user while operating the instrument.
Parameters
- F2 Calibration Range: 50 kg
- M1 Calibration Range: 10 kg ÷ 50 kg
- M2 Calibration Range: 5 kg ÷ 50 kg
- Maximum capacity [Max]: 51 kg
- Stabilization time: 3 s
- Weighing pan dimensions: 302×252 mm
- Electric compensation range: 0 ÷ 51 kg
- Adjustment: internal
- Operating temperature: +10 ÷ +40 °C
- Operating temperature change rate: ±2°C/12h
- Relative humidity: 30% ÷ 70%
- Relative humidity change rate: ±10%/4h
- Weighing device dimensions: 370×280×150 mm
- Packaging dimensions: 520×520×280 mm
- F1 Calibration Range: -
- E1 Calibration Range: -
- E2 Calibration Range: -
- Eccentricity (tested load): 1d / 2 mm
- Readability [d]: 100 mg
- Net weight: 12 kg
- Gross weight: 14,2 kg
- Standard repeatability [5% Max]: 70 mg
- Standard repeatability [Max]: 100 mg
- Permissible repeatability: 150 mg
- Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display: 10″ graphic colour touchscreen
- Controling device dimensions: 249×170×72 mm
